RICOH IM 350FSE/IM 430FSE

Multifunction B&W

The IM 350FSE/IM 430FSE multifunction printers are the smart choice for a forward-thinking business. Unlock the full extent of the device capabilities with the user-friendly Smart Operation Panel. Plus, rely on high-level security and certifications, built-in to ensure your data is protected. With these B&W intelligent devices, you'll get access to the latest technology as it’s available, so your device capabilities scale up as your business does.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail
	IM 350FSEIM 350FSE Output Speed (Letter): 37-ppm Recommended Monthly Volume: 2,500 – 6,500 impressions/month Maximum Monthly Volume: 10,000 impressions/month Power Requirements: 120-127V/12A, 60Hz Ships with starter toner that yields 14,000 B&W prints (ISO/IEC 19752). Weight: 67.24 lbs. (30.5 kg) W × D × H (inches): 18.7 × 17.4 × 20.1 W × D × H (mm): 475 × 442 × 511	IM 350FSE The item(s) below are not compatible with this option and cannot be selected: Print Cartridge IM 430 (419078)	423853
	IM 430FSEIM 430FSE Output Speed (Letter): 45-ppm Recommended Monthly Volume: 3,000 – 7,000 impressions/month Maximum Monthly Volume: 10,000 impressions/month Power Requirements: 120-127V/12A, 60Hz Ships with starter toner that yields 17,400 B&W prints (ISO/IEC 19752). Weight: 67.24 lbs. (30.5 kg) W × D × H (inches): 18.7 × 17.4 × 20.1 W × D × H (mm): 475 × 442 × 511	IM 430FSE The item(s) below are not compatible with this option and cannot be selected: Print Cartridge IM 350 (419081)	423855

Please Note:

Up to 3 paper feed units may be added to the mainframe for a maximum paper capacity of 2,100 sheets.

Step 2: Paper Tray & Optional Accessories

Item/Description	Tips	Item #
Paper Feed Unit PB1110 (1 × 250 Sheet)Paper Feed Unit PB1110 (1 × 250 Sheet) Provides an additional 250 sheets. Paper sizes up to 8.5" × 14". Paper weights up to 14 lb. Bond/120 lb. Index. Weight: 10.58 lbs. (4.8 kg) W × D × H (inches): 14.6 × 15.5 × 3.8 W × D × H (mm): 371 × 394 × 97	No tooltip available.	418080
Paper Feed Unit PB1110TL (1 × 250 Sheet Lock and Label)Paper Feed Unit PB1110TL (1 × 250 Sheet Lock and Label) A locking and label enhanced paper feed unit. Provides an additional 250 sheets. Paper sizes up to 8.5" × 14". Paper weights up to 14 lb. Bond/120 lb. Index. Weight: 10.58 lbs. (4.8 kg) W × D × H (inches): 14.6 × 15.5 × 3.8 W × D × H (mm): 371 × 394 × 97	No tooltip available.	418219
Paper Feed Unit PB1120 (1 × 500 Sheet)Paper Feed Unit PB1120 (1 × 500 Sheet) Provides an additional 500 sheets. Paper sizes up to 8.5" × 14". Paper weights up to 14 lb. Bond/120 lb. Index. Weight: 12.13 lbs. (5.5 kg) W × D × H (inches): 14.6 × 15.5 × 4.9 W × D × H (mm): 371 × 394 × 124	No tooltip available.	418081
Paper Feed Unit PB1120TL (1 × 500 Sheet Lock and Label)Paper Feed Unit PB1120TL (1 × 500 Sheet Lock and Label) A locking and label enhanced paper feed unit. Provides an additional 500 sheets. Paper sizes up to 8.5" × 14". Paper weights up to 14 lb. Bond/120 lb. Index. Weight: 12.13 lbs. (5.5 kg) W × D × H (inches): 14.6 × 15.5 × 4.9 W × D × H (mm): 371 × 394 × 124	No tooltip available.	418218

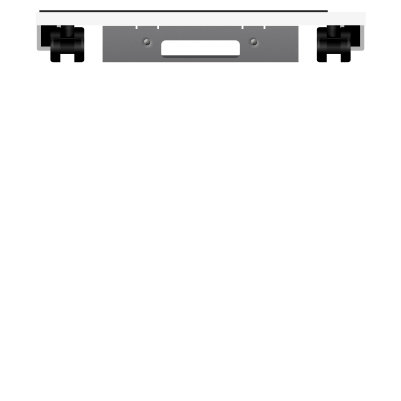

Caster Table Type M34Caster Table Type M34 Provides a platform with wheels to easily move the device. Can only be configured with either one, two or three optional paper feed units. Note: Caster Table Type M34 or Medium Cabinet Type P must be added to the configuration when three optional paper feed units are installed.	Caster Table Type M34 The item(s) below are not compatible with this option and cannot be selected: Medium Cabinet Type P (52005) Tall Cabinet Type Q (52006)	52007

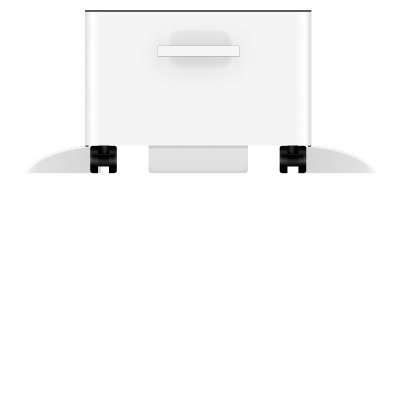

Medium Cabinet Type PMedium Cabinet Type P Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper. Can only be configured with either two or three optional paper feed units. Weight: 35.3 lbs. (16 kg) W × D × H (inches): 14.6 × 15.4 × 11.2 W × D × H (mm): 371 × 391 × 284 Note: Medium Cabinet Type P or Caster Table Type M34 must be added to the configuration when three optional paper feed units are installed.	Medium Cabinet Type P The item(s) below are not compatible with this option and cannot be selected: Caster Table Type M34 (52007) Tall Cabinet Type Q (52006)	52005

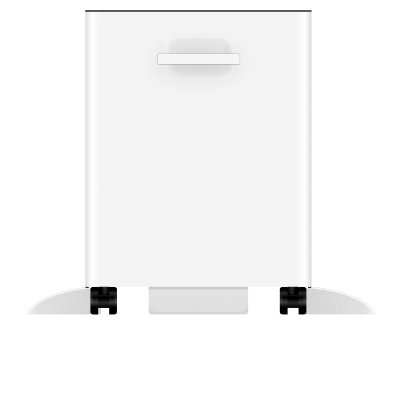

Tall Cabinet Type QTall Cabinet Type Q Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper. Can only be configured with either the standard configuration or one optional paper feed unit. Weight: 49.8 lbs. (18.5 kg) W × D × H (inches): 14.6 × 15.4 × 20.8 W × D × H (mm): 371 × 391 × 528	Tall Cabinet Type Q The item(s) below are not compatible with this option and cannot be selected: Caster Table Type M34 (52007) Medium Cabinet Type P (52005)	52006

Step 3: Finishing Options

	Item/Description	Tips	Item #	Thumbnail

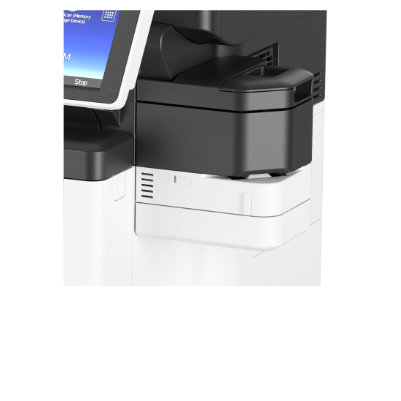

	Offline Stapler Type M34Offline Stapler Type M34 Optional offline stapler located on the side of the system providing walk-up users with the ability to manually staple printed output (corner or edge staples up to 20 sheets). The stapler can staple 1,000 times without reloading. W × D × H (inches): 2.7 × 3.5 × 2.6 W × D × H (mm): 69 × 89 × 66	No tooltip available.	418093

Step 4: Print/Scan Options

	Item/Description	Tips	Item #	Thumbnail
Network Environment/Connectivity
	IEEE802.11 Interface Unit Type M24IEEE802.11 Interface Unit Type M24 Allows you to connect the device to an IEEE 802.11 wireless LAN network. Useful for temporary sites and locations where cabling is impractical. When added, the device cannot operate simultaneously with a wired Ethernet connection.	No tooltip available.	407863
	PostScript3 Unit Type M34PostScript3 Unit Type M34 Genuine Adobe^® PostScript^®3™. Recommended for printing more complex B&W and PDF files. Required for printing from Mac OS. The IM 350FSE and IM 430FSE come with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe^® workflows like Photoshop^®, Illustrator^® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.	No tooltip available.	418070
Printing/Scanning Features
	Item/Description	Tips	Item #	Thumbnail
	OCR Unit Type M13OCR Unit Type M13 This function embeds invisible texts on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders and saved on external media (USB/SD). Supports blank page removal when scanning. Ideal for document intensive workflows that require searchable PDFs such as legal, education and finance.	No tooltip available.	417430
	IPDS Unit Type P18IPDS Unit Type P18 Intelligent Printer Data Stream (IPDS) option. Used in IBM Series I or Series Z.	No tooltip available.	418444
	Unicode Font Package for SAP^® - 1 LicenseUnicode Font Package for SAP^® - 1 License Unicode Font Package for SAP - 1 seat license. Allows you to print international characters in SAP environments.	No tooltip available.	413009

Step 5: Security & Miscellaneous Accessories

Item/Description	Tips	Item #

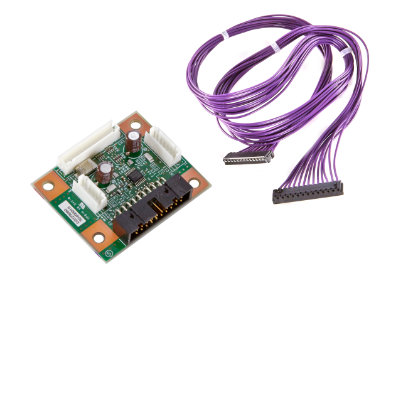

Optional Counter Interface Unit Type M12Optional Counter Interface Unit Type M12 20-pin interface used to attach an external key counter or key card device.	No tooltip available.	417111

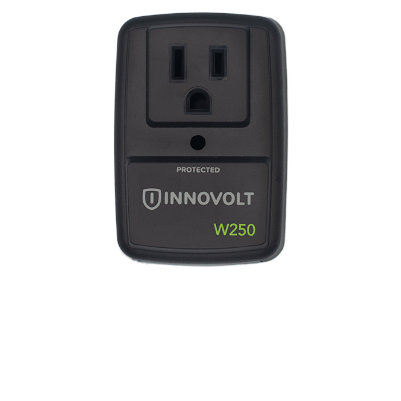

Single Outlet Wall Mount Power Filter 120V/15ASingle Outlet Wall Mount Power Filter 120V/15A Wall-mounted power filter provides multi-stage power surge protection and noise filtering for output devices. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products. Note: Single Outlet Wall Mount Power Filter 120V/15A cannot be installed with Power Filter with Inrush, Surge and Noise Protection 120V/15A.	Single Outlet Wall Mount Power Filter 120V/15A The item(s) below are not compatible with this option and cannot be selected: Power Filter with Inrush, Surge and Noise Protection 120V/15A (W1500-15-120)	W250-15-120

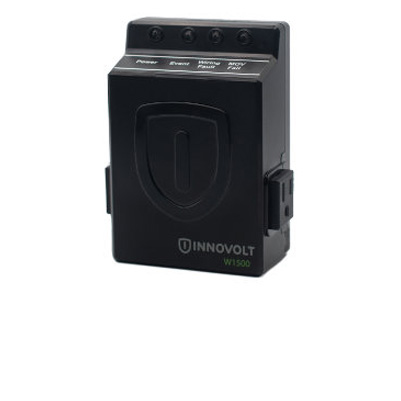

Power Filter with Inrush, Surge and Noise Protection 120V/15APower Filter with Inrush, Surge and Noise Protection 120V/15A Power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products. Note: Power Filter with Inrush, Surge and Noise Protection 120V/15A cannot be installed with Single Outlet Wall Mount Power Filter 120V/15A.	Power Filter with Inrush, Surge and Noise Protection 120V/15A The item(s) below are not compatible with this option and cannot be selected: Single Outlet Wall Mount Power Filter 120V/15A (W250-15-120)	W1500-15-120

Please Note:

The mainframe ships with starter toner. For maximum performance and yield, we recommend using genuine Ricoh Family Group-branded parts and supplies.

Step 6: Supplies

Item/Description	Tips	Item #
Print Cartridge IM 350Print Cartridge IM 350 Black toner for the IM 350FSE. Targeted Yield: 14,000 prints/cartridge Declared yield value in accordance with ISO/IEC 19752. Actual yields may vary based on types of images printed and other factors. Note: 1. A starter toner cartridge is included with the mainframe, but we recommend ordering another for replenishment. 2. IM 350FSE must be selected to add this supply.	Print Cartridge IM 350 At least one of the item(s) below must be selected to be able to select this item: IM 350FSE (423853)	419081
Print Cartridge IM 430Print Cartridge IM 430 Black toner for the IM 430FSE. Targeted Yield: 17,400 prints/cartridge Declared yield value in accordance with ISO/IEC 19752. Actual yields may vary based on types of images printed and other factors. Note: 1. A starter toner cartridge is included with the mainframe, but we recommend ordering another for replenishment. 2. IM 430FSE must be selected to add this supply.	Print Cartridge IM 430 At least one of the item(s) below must be selected to be able to select this item: IM 430FSE (423855)	419078

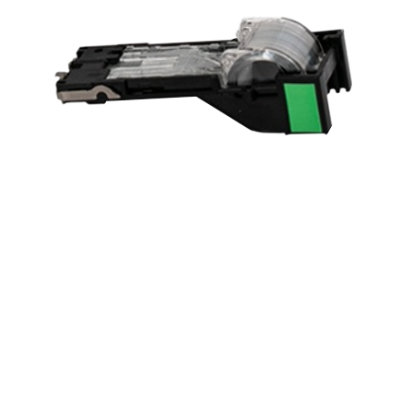

Refill Staple Type M34Refill Staple Type M34 Unit Packaging: 1,000 per Crtg. (5 Crtg/Ctn) Yield (CTN): 5,000 Note: Offline Stapler Type M34 must be selected to add this supply.	Refill Staple Type M34 At least one of the item(s) below must be selected to be able to select this item: Offline Stapler Type M34 (418093)	418136

Complete Your Configuration

Start Over

Standard Features Include

10.1" Smart Operation Panel
50-Sheet Single Pass Document Feeder
500-Sheet Paper Tray
100-Sheet Bypass Tray
Integrated Duplex

320 GB Hard Disk Drive
2 GB RAM
Print, Copy, Scan and Fax Capabilities
Mobile Printing
PostScript3 Emulation

Show More Features

Current Configuration

W × D × H 0" × 0" × 0"
