IM C320F SYSTEM CONFIGURATOR

Visit Ricoh-USA.com

Ricoh Online System Configurator Tool

Choose a Model• Select Options • Save, Print or Email

RICOH IM C320F

Multifunction Color

The RICOH IM C320F is a compact and feature-rich multifunction printer ideal for companies seeking quality, affordability and an environmentally friendly print solution. It is designed for workgroups that utilize advanced software solutions to streamline workflow and boost worker productivity. Produce impressive visuals and professional-grade prints for all your office documents. Use the large intuitive smart operation panel to keep your office running smoothly. Secure your data with built-in user authentication and the latest data network security standard, TLS 1.3. Plus, it will fit seamlessly into your existing network with full connectivity options.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail

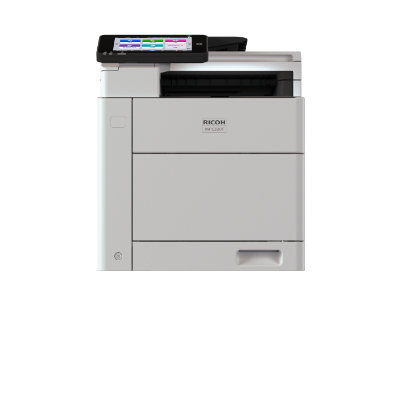

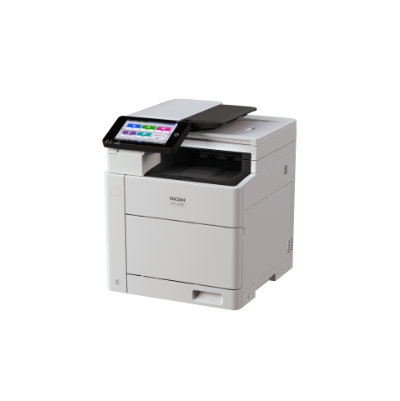

	IM C320FIM C320F Output Speed (Letter): 32 ppm Recommended Monthly Volume: 1,000 – 2,000 impressions/month Maximum Monthly Volume: 7,500 impressions/month Power Requirements: 120-127V 60Hz Weight: 65.8 lbs. (29 kg) W × D × H (inches): 16.2 × 16.9 × 19 W × D × H (mm): 411 × 429 × 483	No tooltip available.	423620

Step 2: Paper Tray & Optional Accessories

Item/Description	Tips	Item #

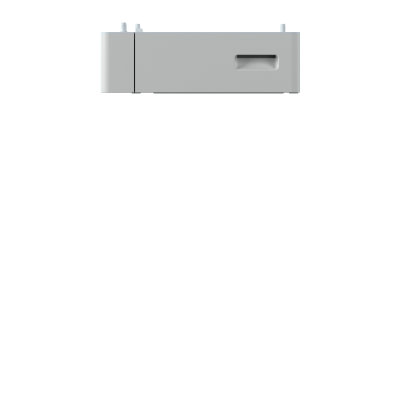

Paper Feed Unit PB1210 (1 × 500 Sheets)Paper Feed Unit PB1210 (1 × 500 Sheets) Provides an additional 500 sheets. Paper sizes up to 8.5" × 14"/LG. Paper weights up to 200 gsm. Weight: 13.2 lbs. (6 kg) Only one optional Paper Feed Unit PB1210 may be added to the mainframe. W × D × H (inches): 16.2 × 16.9 × 5 W × D × H (mm): 411 × 429 × 127	Paper Feed Unit PB1210 (1 × 500 Sheets) The item(s) below are not compatible with this option and cannot be selected: High Cabinet Type A10 (52009)	423678

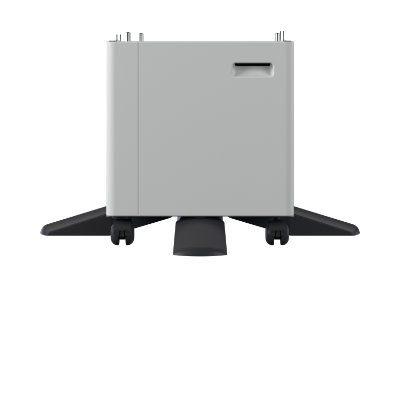

Low Cabinet Type A9Low Cabinet Type A9 Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper. Can only be configured with one optional paper feed unit. Weight: 25 lbs. (11.3 kg) W × D × H (inches): 16.9 × 16.1 × 17.6 W × D × H (mm): 429 × 409 × 447 Note: 1. Paper Feed Unit PB1210 (1 × 500 Sheets) must be selected to add this option. 2. Low Cabinet Type A9 cannot be installed with High Cabinet Type A10.	Low Cabinet Type A9 At least one of the item(s) below must be selected to be able to select this item: Paper Feed Unit PB1210 (1 × 500 Sheets) (423678)	52008

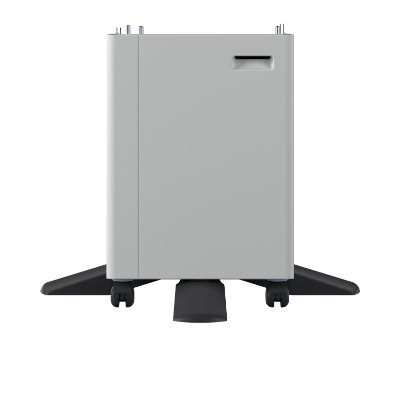

High Cabinet Type A10High Cabinet Type A10 Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper. Can only be configured with the mainframe. Weight: 31 lbs. (14.1 kg) W × D × H (inches): 16.9 × 16.1 × 23.6 W × D × H (mm): 429 × 409 × 599 Note: High Cabinet Type A10 cannot be installed with Paper Feed Unit PB1210 (1 × 500 Sheets) or Low Cabinet Type A9.	High Cabinet Type A10 The item(s) below are not compatible with this option and cannot be selected: Paper Feed Unit PB1210 (1 × 500 Sheets) (423678) Low Cabinet Type A9 (52008)	52009

Step 3: Print/Scan Connectivity Options

Item/Description	Tips	Item #

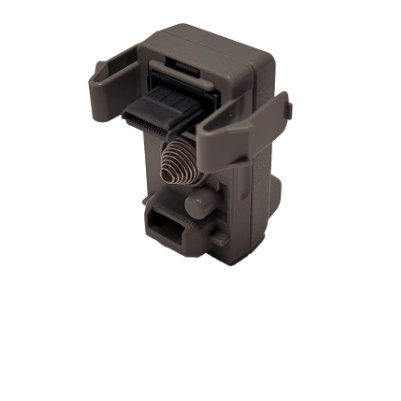

IEEE 802.11a/b/g/n/ac Interface Unit Type M57IEEE 802.11a/b/g/n/ac Interface Unit Type M57 Allows you to connect the device to an IEEE 802.11 wireless LAN network; useful for temporary sites and locations where cabling is impractical. Only one of these options can be installed on the mainframe and it cannot operate simultaneously with a wired Ethernet connection.	No tooltip available.	423640
PostScript3 Unit Type M57PostScript3 Unit Type M57 Available for customers who require True Adobe^® workflows like Photoshop^®, Illustrator^® and PDF/X as well as additional font support. Required for printing from Mac OS. If this option is installed, the built-in standard PostScript 3 cannot be used.	No tooltip available.	423659

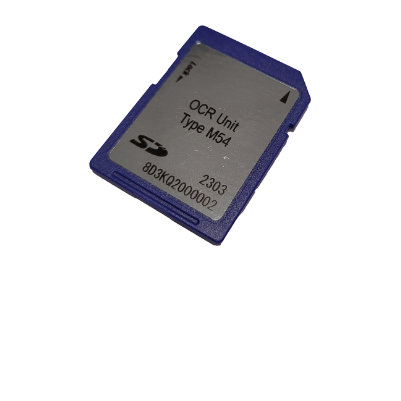

OCR Unit Type M54OCR Unit Type M54 This function embeds invisible text on scanned images of PDFs and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders and external media (USB). Supports blank page removal when scanning.	No tooltip available.	423515

Step 4: Fax Options

	Item/Description	Tips	Item #	Thumbnail

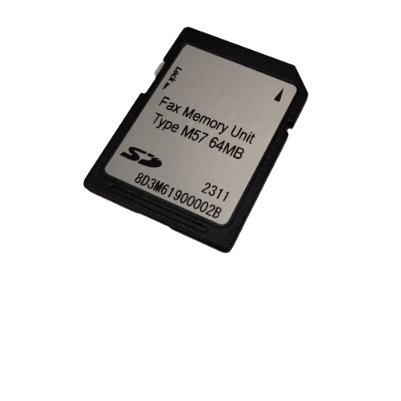

	Fax Memory Unit Type M57 64MBFax Memory Unit Type M57 64MB Expansion memory provides additional 64 MB memory; increases fax memory to 4,800 pages.	No tooltip available.	423657

Step 5: Security & Miscellaneous Accessories

Item/Description	Tips	Item #

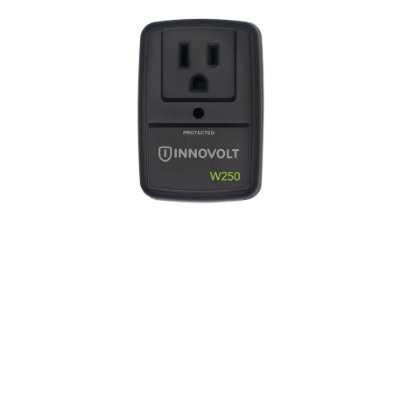

Single Outlet Wall Mount Power Filter 120V/15ASingle Outlet Wall Mount Power Filter 120V/15A Wall-mounted power filter provides multi-stage power surge protection and noise filtering for output devices. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.	No tooltip available.	W250-15-120

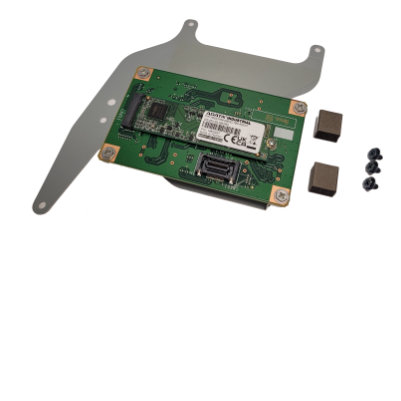

SSD Option Type M57 256 GBSSD Option Type M57 256 GB Adds 256 GB of internal storage.	No tooltip available.	423641

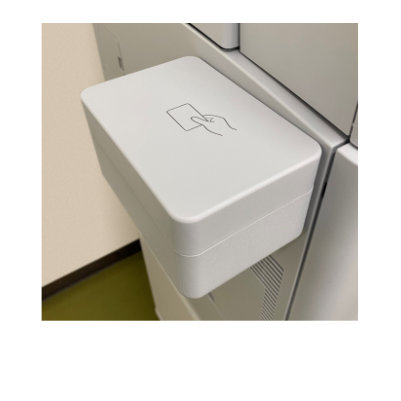

Card Reader Cover Type M57Card Reader Cover Type M57 For use with third-party card readers. The Card reader cover attaches to the left‑hand side of the device. A card reader is not included; not all card readers may be supported. W × D × H (inches): 3.4 × 5 × 2.8 W × D × H (mm): 86 × 127 × 71	No tooltip available.	423661
Unicode Font Package for SAP^® - 1 LicenseUnicode Font Package for SAP^® - 1 License Unicode Font Package for SAP - 1 Seat License.	No tooltip available.	413009

Please Note:

The mainframe does not ship standard with starter toners. For maximum performance and yield, we recommend using genuine Ricoh parts and supplies.

Step 6: Supplies

Item/Description	Tips	Item #

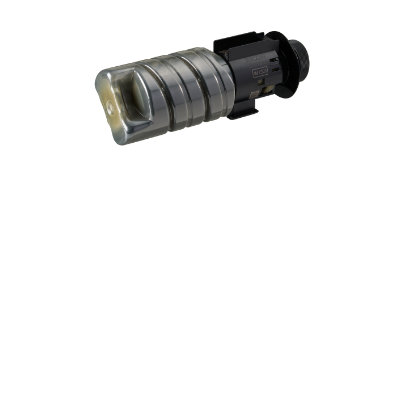

Print Cartridge Black IM C320Print Cartridge Black IM C320 Black toner Unit Packaging: 1 cartridge (173 g) Targeted Yield: 16,000 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors.	No tooltip available.	842726

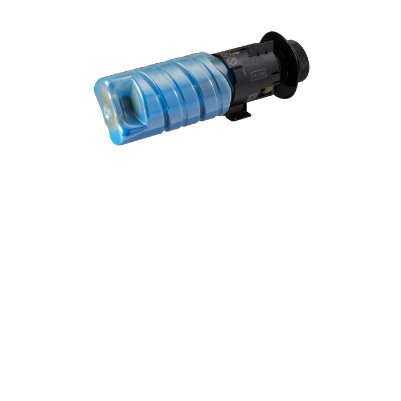

Print Cartridge Cyan IM C320Print Cartridge Cyan IM C320 Cyan toner Unit Packaging: 1 cartridge (104 g) Targeted Yield: 10,000 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors.	No tooltip available.	842727

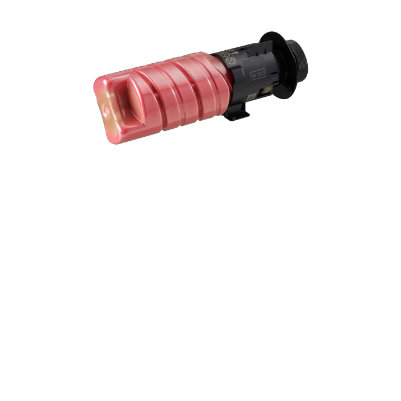

Print Cartridge Magenta IM C320Print Cartridge Magenta IM C320 Magenta toner Unit Packaging: 1 cartridge (119 g) Targeted Yield: 10,000 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors.	No tooltip available.	842728

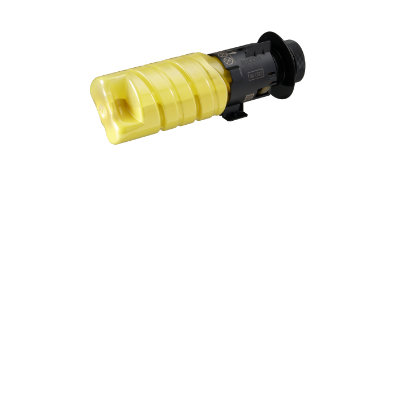

Print Cartridge Yellow IM C320Print Cartridge Yellow IM C320 Yellow toner Unit Packaging: 1 cartridge (119 g) Targeted Yield: 10,000 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors.	No tooltip available.	842729

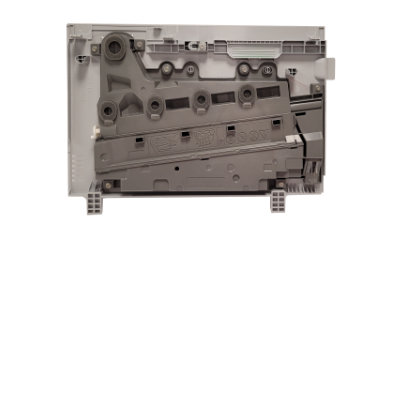

Waste Toner Bottle IM C320Waste Toner Bottle IM C320 Unit Packaging: 1 - each Targeted Yield: 11,000 pages Based on printing on letter paper with 5% coverage; actual yields may vary based on images printed and other factors.	No tooltip available.	423651

Complete Your Configuration

Start Over

Standard Features Include

7" Smart Operation Panel
Print, Copy, Scan and Fax
250-Sheet Paper Tray
50-Sheet Bypass Tray
Automatic Duplexing

50-Sheet Single Pass Document Feeder
PCL5c/6
PostScript3 Emulation

Show More Features

Current Configuration

W × D × H 0" × 0" × 0"
0mm × 0mm × 0mm

View Selected Items
