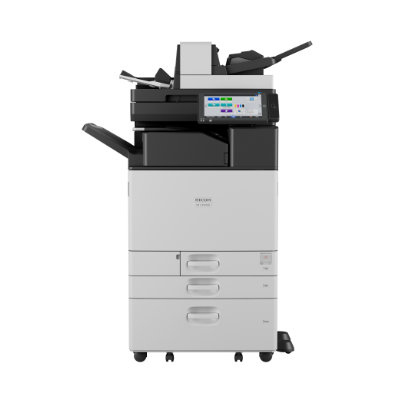

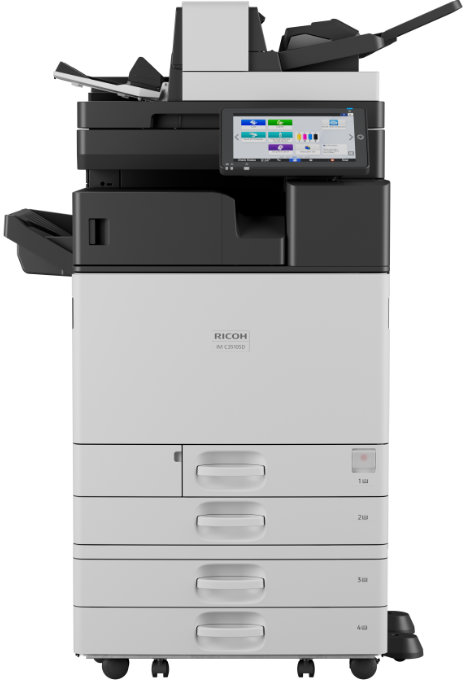

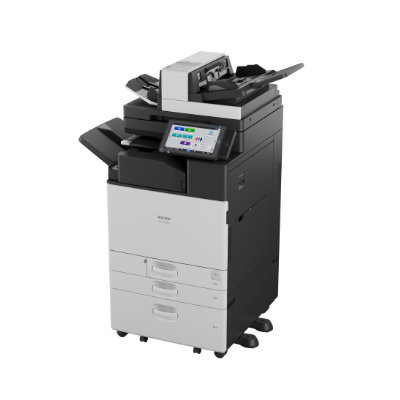

RICOH IM C3510SD

Multifunction Color

The IM C3510SD delivers exactly what businesses need. Use the revolutionary single pass document feeder for fast, easy document digitization. Add an optional finisher to create professional-quality booklets, stapled sets, brochures and more. Mitigate risks and protect intellectual property with robust security safeguards designed to ensure smooth and secured operations. Plus, support your environmental commitments while reducing your footprint.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail

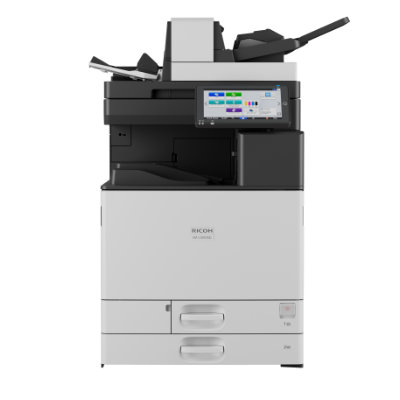

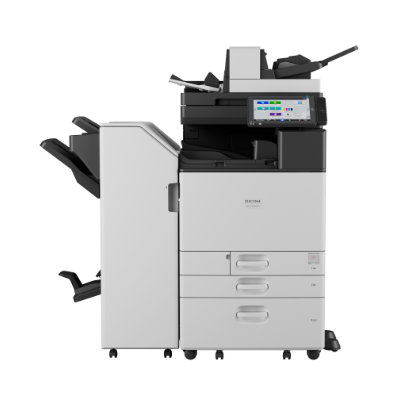

	IM C3510SDIM C3510SD Output Speed (Letter): 35 ppm Recommended Monthly Volume: 7,000 impressions/month Maximum Monthly Volume: 20,000 impressions/month (Letter paper, 20 lb.) Power Requirements: 120V-127V, 60Hz Weight: 224.9 lbs. (102 kg) W × D × H (inches): 23.1 × 27.6 × 40.6 W × D × H (mm): 587 × 701 × 1,031 Note: 1. In order to complete a configuration, one of the following must be installed on the mainframe: Paper Feed Unit PB3320, LCIT PB3330 or Cabinet Type A5. 2. This model has been Common Criteria certified.	No tooltip available.	423746

Step 2: Paper Tray & Optional Accessories

Item/Description	Tips	Item #

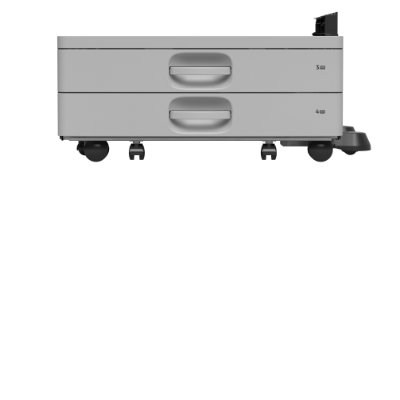

Paper Feed Unit PB3320Paper Feed Unit PB3320 Provides an additional 1,100 sheets. Paper sizes from 5.5" × 8.5" to 12" × 18". Paper weights up to 80 lb./166 lb. Index (300 g/m²). Weight: 50.7 lbs. (23 kg) W × D × H (inches): 23.1 × 27 × 9.7 W × D × H (mm): 587 × 686 × 246 Note: Paper Feed Unit PB3320 cannot be installed with LCIT PB3330 or Cabinet Type A5.	Paper Feed Unit PB3320 The item(s) below are not compatible with this option and cannot be selected: LCIT PB3330 (419374) Cabinet Type A5 (52721)	423699

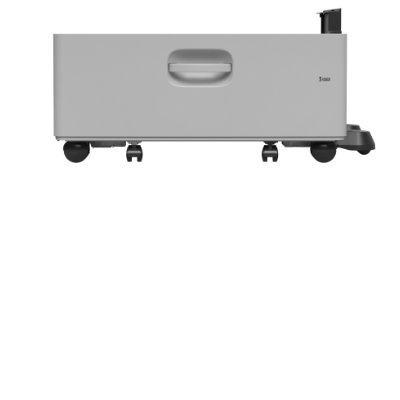

LCIT PB3330LCIT PB3330 Provides an additional 2,000 sheets. Supports paper sizes of 8.5" × 11"/A4 only. Paper weights up to 80 lb./166 lb. Index (300 g/m²). Weight: 50.7 lbs. (23 kg) W × D × H (inches): 23.1 × 27 × 9.7 W × D × H (mm): 587 × 686 × 246 Note: LCIT PB3330 cannot be installed with Paper Feed Unit PB3320 or Cabinet Type A5.	LCIT PB3330 The item(s) below are not compatible with this option and cannot be selected: Paper Feed Unit PB3320 (423699) Cabinet Type A5 (52721)	419374

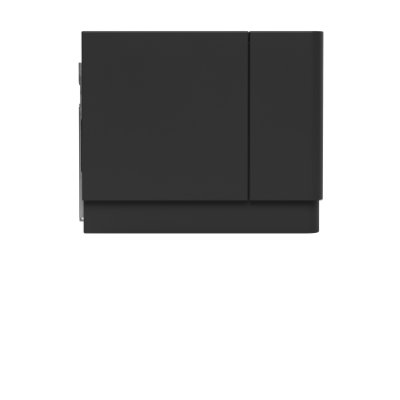

LCIT RT3050LCIT RT3050 A side large capacity tray that provides an additional 1,650 sheets. Supports paper sizes of 8.5" × 11"/A4 only. Paper weights up to 80 lb./166 lb. Index (300 g/m²). Weight: 23.1 lbs. (10.5 kg) W × D × H (inches): 13.4 × 21.4 × 11.4 W × D × H (mm): 340 × 544 × 290 Note: 1. Paper Feed Unit PB3320 or LCIT PB3330 must be selected to add this option. 2. LCIT RT3050 cannot be installed with Cabinet Type A5.	LCIT RT3050 At least one of the item(s) below must be selected to be able to select this item: Paper Feed Unit PB3320 (423699) LCIT PB3330 (419374)	419378

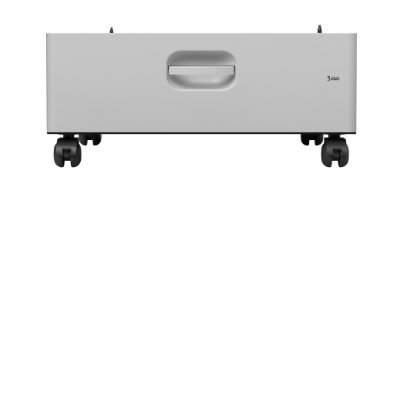

Cabinet Type A5Cabinet Type A5 Provides a convenient option for the storage of supplies and paper. Can only be configured with the standard configuration. Weight: 29 lbs. (13.2 kg) W × D × H (inches): 23.1 × 27 × 9.7 W × D × H (mm): 587 × 686 × 246 Note: Cabinet Type A5 cannot be installed with Paper Feed Unit PB3320, LCIT PB3330 or LCIT RT3050.	Cabinet Type A5 The item(s) below are not compatible with this option and cannot be selected: Paper Feed Unit PB3320 (423699) LCIT PB3330 (419374) LCIT RT3050 (419378)	52721

Step 3: Output & Finishing Options

	Item/Description	Tips	Item #	Thumbnail
Internal

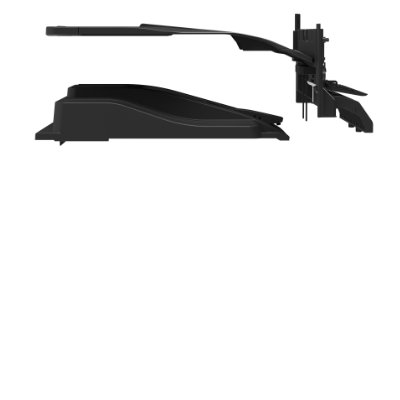

	1 Bin Tray BN31401 Bin Tray BN3140 Provides an additional output tray above the standard Internal Tray, optional Internal Finisher, optional Multi-Fold Unit, optional Internal Shift Tray or optional Bridge Unit. Holds 125 sheets. Allows user to separate print and fax output from copy. Supports paper sizes up to 12.6" × 17.7". Weight: 3.1 lbs. (1.4 kg) W × D × H (inches): 17.5 × 17.7 × 5.9 W × D × H (mm): 445 × 450 × 150	No tooltip available.	419383

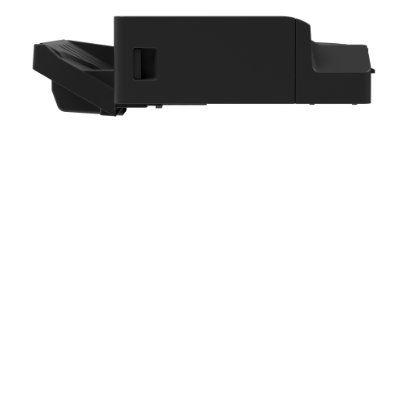

	Internal Finisher SR3310 (500 sheet)Internal Finisher SR3310 (500 sheet) 500-sheet Internal Finisher provides multi-position stapling and optional hole punching. Recommended for offices with limited floor space. Supports paper sizes up to 12" × 18". Weight: 28.2 lbs. (12.8 kg) W × D × H (inches): 21.5 × 20.6 × 6.7 W × D × H (mm): 546 × 523 × 170 Note: Internal Finisher SR3310 cannot be installed with Internal Multi-Fold Unit FD3020, Internal Shift Tray SH3090, Finisher SR3320, Booklet Finisher SR3330, Bridge Unit BU3100 or any related options.	Internal Finisher SR3310 (500 sheet) The item(s) below are not compatible with this option and cannot be selected: Internal Multi-Fold Unit FD3020 (419409) Internal Shift Tray SH3090 (419385) Finisher SR3320 (1,000 sheet) (419399) Booklet Finisher SR3330 (1,000 sheet) (419397) Bridge Unit BU3100 (419381) Punch Unit PU3080 NA (418381) Staple Type S Cartridge for SR3330 (Normal and Saddle Stitch) (412874) Staple Type K Refill Cartridge for SR3330 (Normal and Saddle Stitch) (410802)	419401

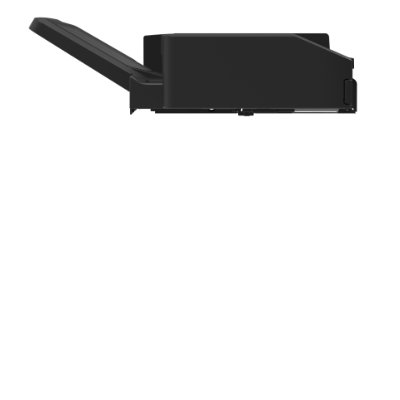

	Internal Multi-Fold Unit FD3020Internal Multi-Fold Unit FD3020 Allows for the creation of professionally designed finished documents such as newsletters, brochures and sales and marketing materials. Folding patterns include Z‑Fold, Half‑Fold and Tri‑Fold. The unit can tri‑fold up to 3 letter‑sized sheets at a time. This option can be added to the configuration with or without an external finisher. No Bridge Unit is required. Paper sizes up to 12" × 18". Weight: 35.3 lbs. (16 kg) W × D × H (inches): 24.1 × 21.9 × 7.2 W × D × H (mm): 612 × 556 × 183 Note: 1. This option or Bridge Unit BU3100 must be installed when adding Finisher SR3320 or Booklet Finisher SR3330. 2. Internal Multi-Fold Unit FD3020 cannot be installed with Internal Finisher SR3310, Internal Shift Tray SH3090, Bridge Unit BU3100 or any related options.	Internal Multi-Fold Unit FD3020 The item(s) below are not compatible with this option and cannot be selected: Internal Finisher SR3310 (500 sheet) (419401) Internal Shift Tray SH3090 (419385) Bridge Unit BU3100 (419381) Punch Unit PU3100 NA (419403)	419409

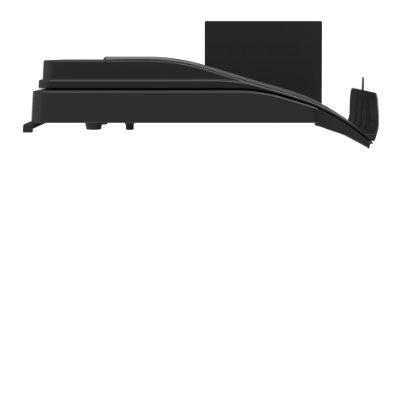

	Internal Shift Tray SH3090Internal Shift Tray SH3090 Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job. Holds 250 sheets of 8.5" × 11"/A4 or smaller and holds 125 sheets of 8.5" × 14" or larger. Supports paper sizes up to 12" × 18". Weight: 3.1 lbs. (1.3 kg) W × D × H (inches): 16.5 × 19.3 × 4.2 W × D × H (mm): 419 × 490 × 107 Note: Internal Shift Tray SH3090 cannot be installed with Internal Finisher SR3310, Internal Multi-Fold Unit FD3020, Finisher SR3320, Booklet Finisher SR3330, Bridge Unit BU3100 or any related options.	Internal Shift Tray SH3090 The item(s) below are not compatible with this option and cannot be selected: Internal Finisher SR3310 (500 sheet) (419401) Internal Multi-Fold Unit FD3020 (419409) Finisher SR3320 (1,000 sheet) (419399) Booklet Finisher SR3330 (1,000 sheet) (419397) Bridge Unit BU3100 (419381) Punch Unit PU3080 NA (418381) Punch Unit PU3100 NA (419403) Staple Type T Cartridge for SR3310/SR3320 (415009) Staple Type T Refill Cartridge for SR3310/SR3320 (415010) Staple Type S Cartridge for SR3330 (Normal and Saddle Stitch) (412874) Staple Type K Refill Cartridge for SR3330 (Normal and Saddle Stitch) (410802)	419385
External
	Item/Description	Tips	Item #	Thumbnail

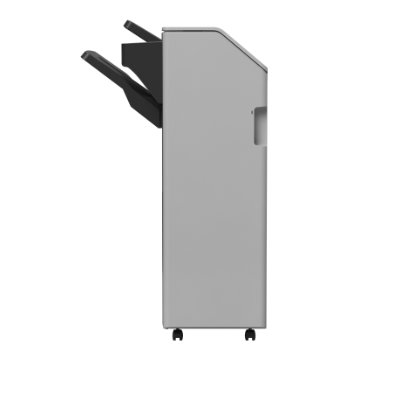

	Finisher SR3320 (1,000 sheet)Finisher SR3320 (1,000 sheet) 1,000-sheet Finisher. For offices that produce collated and stapled sets of documents, this finisher helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole punching and shift-sort collating, as well as a stapleless binding capability of up to 5 sheets. Supports paper sizes up to 12" × 18". Weight: 75 lbs. (34 kg) W × D × H (inches): 22.6 × 25.2 × 37.8 W × D × H (mm): 574 × 640 × 960 Note: 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option. 2. Finisher SR3320 cannot be installed with Internal Finisher SR3310, Internal Shift Tray SH3090, Booklet Finisher SR3330 or any related options.	Finisher SR3320 (1,000 sheet) The item(s) below are not compatible with this option and cannot be selected: Booklet Finisher SR3330 (1,000 sheet) (419397) Staple Type S Cartridge for SR3330 (Normal and Saddle Stitch) (412874) Staple Type K Refill Cartridge for SR3330 (Normal and Saddle Stitch) (410802)	419399

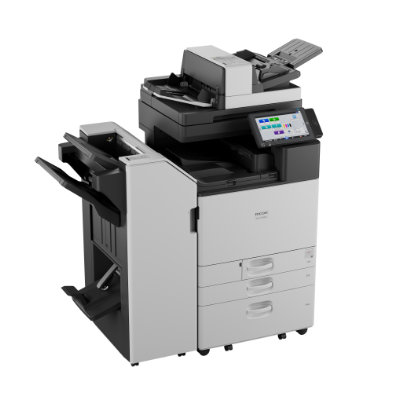

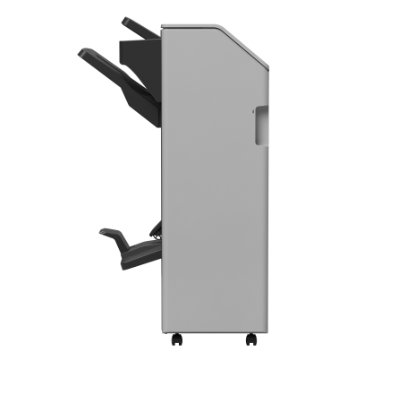

	Booklet Finisher SR3330 (1,000 sheet)Booklet Finisher SR3330 (1,000 sheet) 1,000-sheet Booklet Finisher. Allows documents to be professionally finished as paginated, saddle-stitched booklets. Provides three destinations for output and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters and meeting agendas. Supports paper sizes up to 12" × 18". Supports 50-sheet stapling. Up to 15 sheets can be saddle-stitched. Weight: 95.9 lbs. (43.5 kg) W × D × H (inches): 22.6 × 24.4 × 37.8 W × D × H (mm): 574 × 620 × 960 Note: 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option. 2. Booklet Finisher SR3330 cannot be installed with Internal Finisher SR3310, Internal Shift Tray SH3090, Finisher SR3320 or any related options.	Booklet Finisher SR3330 (1,000 sheet) The item(s) below are not compatible with this option and cannot be selected: Finisher SR3320 (1,000 sheet) (419399) Staple Type T Cartridge for SR3310/SR3320 (415009) Staple Type T Refill Cartridge for SR3310/SR3320 (415010)	419397

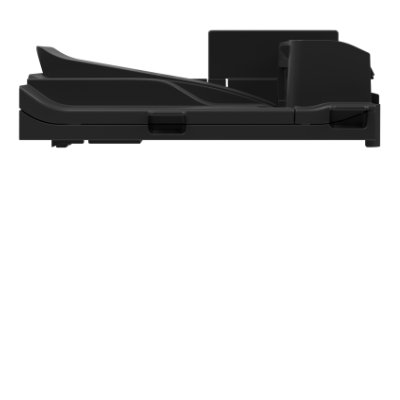

	Bridge Unit BU3100Bridge Unit BU3100 A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for inline stapling or hole punching. Note: 1. Finisher SR3320 or Booklet Finisher SR3330 must be selected to add this option. 2. Bridge Unit BU3100 cannot be installed with Internal Finisher SR3310, Internal Multi-Fold Unit FD3020, Internal Shift Tray SH3090 or any related options.	Bridge Unit BU3100 At least one of the item(s) below must be selected to be able to select this item: Finisher SR3320 (1,000 sheet) (419399) Booklet Finisher SR3330 (1,000 sheet) (419397) The item(s) below are not compatible with this option and cannot be selected: Internal Finisher SR3310 (500 sheet) (419401) Internal Multi-Fold Unit FD3020 (419409) Internal Shift Tray SH3090 (419385) Punch Unit PU3100 NA (419403)	419381
Hole Punching Options
	Item/Description	Tips	Item #	Thumbnail
	Punch Unit PU3100 NAPunch Unit PU3100 NA Optional hole punching for Internal Finisher SR3310. Supports paper sizes up to 11" × 17". Note: Internal Finisher SR3310 must be selected to add this option.	Punch Unit PU3100 NA At least one of the item(s) below must be selected to be able to select this item: Internal Finisher SR3310 (500 sheet) (419401)	419403
	Punch Unit PU3080 NAPunch Unit PU3080 NA Optional hole punching for Finisher SR3320 or Booklet Finisher SR3330. Supports paper sizes up to 11" × 17". Note: Finisher SR3320 or Booklet Finisher SR3330 must be selected to add this option.	Punch Unit PU3080 NA At least one of the item(s) below must be selected to be able to select this item: Finisher SR3320 (1,000 sheet) (419399) Booklet Finisher SR3330 (1,000 sheet) (419397)	418381

Step 4: Print/Scan Options

Item/Description	Tips	Item #
IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52 Allows you to connect the device to an IEEE 802.11 wireless LAN network. Useful for temporary sites and locations where cabling is impractical. Only one of these options can be installed on the unit and it cannot operate simultaneously with a wired Ethernet connection.	No tooltip available.	423571
OCR Unit Type M52OCR Unit Type M52 This function embeds invisible texts on scanned images of PDFs and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders and external media (USB). Supports blank page removal when scanning.	No tooltip available.	419445
PostScript3 Unit Type M63PostScript3 Unit Type M63 Genuine Adobe^® PostScript^®3™. Recommended for printing more complex color and PDF files. The IM C3510SD comes with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe^® workflows like Photoshop^®, Illustrator^® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.	No tooltip available.	423873

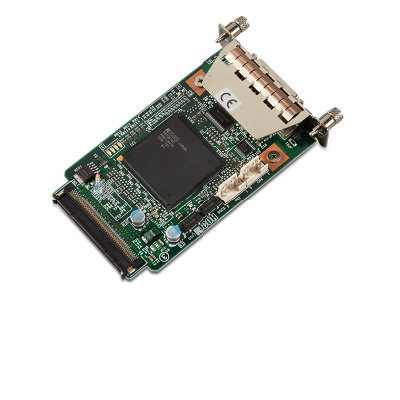

Device Server Option Type M52Device Server Option Type M52 An interface board used to add an extra Ethernet port. Once installed, this option connects two Ethernet cables simultaneously: one to the machine's Ethernet port and one to the Ethernet port of the Device Server Option Type M52. An IP address can be assigned to each connection and one machine can be used to print from two different network segments.	No tooltip available.	423602

Step 5: Fax Options

Item/Description	Tips	Item #
Fax Option Type M52Fax Option Type M52 Installation required to enable fax services: 33.6 kbps, approximately 3 second transmission speed, standard JBIG and standard 320 Pages Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.	No tooltip available.	419423

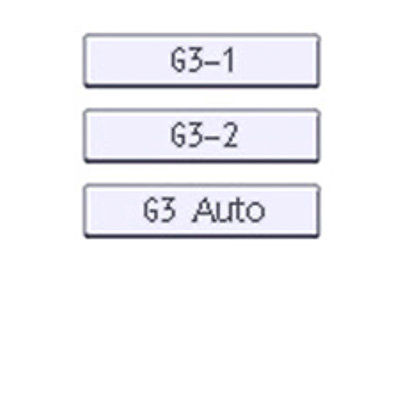

G3 Interface Unit Type M52G3 Interface Unit Type M52 Required to add an additional fax line. Up to two units can be installed. Note: Fax Option Type M52 must be selected to add this option.	G3 Interface Unit Type M52 At least one of the item(s) below must be selected to be able to select this item: Fax Option Type M52 (419423)	419427
Fax Memory Unit Type M52Fax Memory Unit Type M52 Increases fax memory to 4,800 pages and fax resolution to 400 × 400 dpi. Note: Fax Option Type M52 must be selected to add this option.	Fax Memory Unit Type M52 At least one of the item(s) below must be selected to be able to select this item: Fax Option Type M52 (419423)	419430

Step 6: Security & Miscellaneous Accessories

Item/Description	Tips	Item #

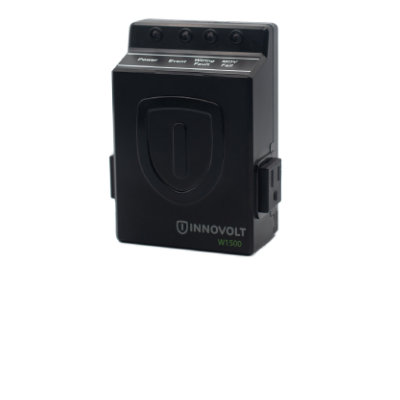

Power Filter with Inrush, Surge and Noise Protection 120V/15APower Filter with Inrush, Surge and Noise Protection 120V/15A Designed to provide a higher level of noise filtering and surge protection for devices that employ more sensitive and complex electronic components. Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products.	No tooltip available.	W1500-15-120

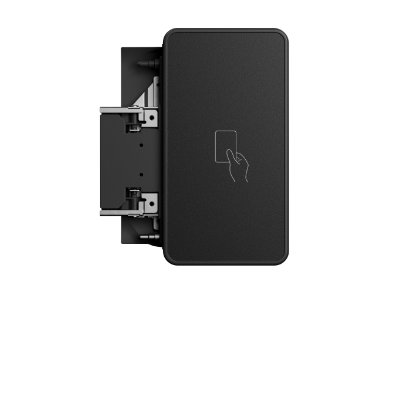

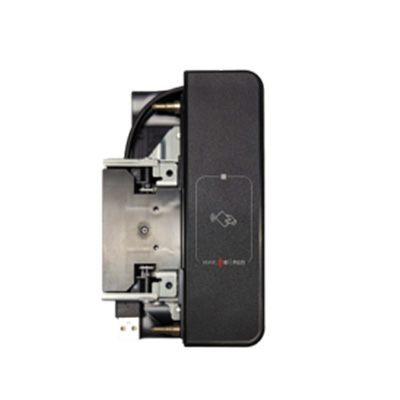

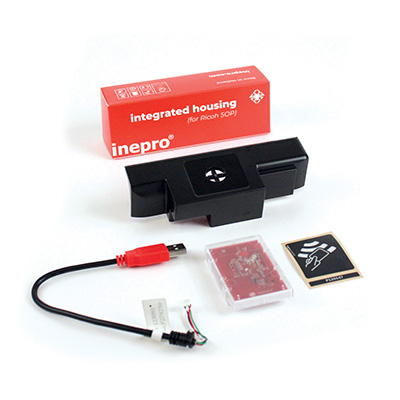

Card Reader Cover Type M52Card Reader Cover Type M52 For use with Ricoh and 3^rd party software solutions. The Card Reader Cover attaches to the right-hand side of the Smart Operation Panel. A card reader is not included. Not all card readers may be supported.	No tooltip available.	419413

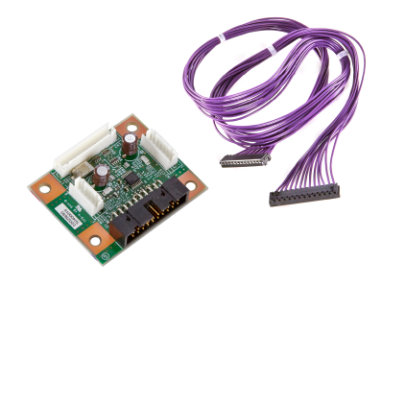

Optional Counter Interface Unit Type M12Optional Counter Interface Unit Type M12 20-pin interface used to attach external key counter or key card device.	No tooltip available.	417111

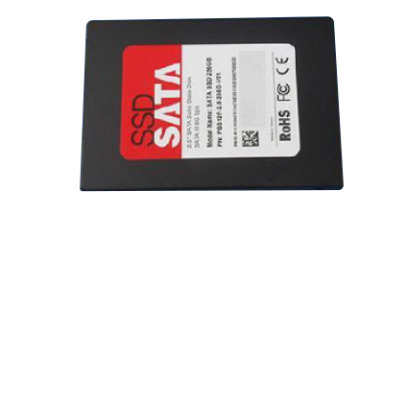

Enhanced Security SSD Option Type M52 256 GBEnhanced Security SSD Option Type M52 256 GB An optional FIPS 140-2 validated 256 GB Solid State Drive. This option will replace the standard 256 GB Solid State Drive when added to the configuration. Note: Enhanced Security SSD Option Type M52 256 GB cannot be installed with HDD Option Type M52 320 GB.	Enhanced Security SSD Option Type M52 256 GB The item(s) below are not compatible with this option and cannot be selected: HDD Option Type M52 320 GB (419435)	419436

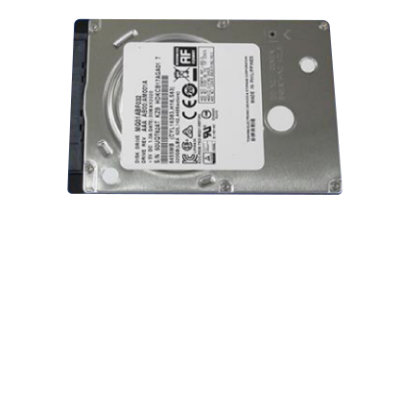

HDD Option Type M52 320 GBHDD Option Type M52 320 GB Optional 320 GB Hard Disk Drive required to enable DOSS and IEEE 2600.1 certification. This option will replace the standard 256 GB Solid State Drive when added to the configuration. The IM C3510SD has not yet been IEEE 2600.1 certified. Note: HDD Option Type M52 320 GB cannot be installed with Enhanced Security SSD Option Type M52 256 GB.	HDD Option Type M52 320 GB The item(s) below are not compatible with this option and cannot be selected: Enhanced Security SSD Option Type M52 256 GB (419436)	419435
Unicode Font Package for SAP^® 1 LicenseUnicode Font Package for SAP^® 1 License Unicode Font Package for SAP - 1 seat license.	No tooltip available.	413009

Please Note:

The mainframe does not ship standard with starter toners. For maximum performance and yield, we recommend using genuine Ricoh Family Group-branded parts and supplies.

Step 7: Supplies

Item/Description	Tips	Item #
Print Cartridge Black IM C3510Print Cartridge Black IM C3510 Black toner Unit Packaging: 1 bottle (434 g) Yield (CTN): 31,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842550
Print Cartridge Yellow IM C3510Print Cartridge Yellow IM C3510 Yellow toner Unit Packaging: 1 bottle (298 g) Yield (CTN): 19,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842551
Print Cartridge Magenta IM C3510Print Cartridge Magenta IM C3510 Magenta toner Unit Packaging: 1 bottle (344 g) Yield (CTN): 19,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842552
Print Cartridge Cyan IM C3510Print Cartridge Cyan IM C3510 Cyan toner Unit Packaging: 1 bottle (297 g) Yield (CTN): 19,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842553
Waste Toner Bottle IM C6000Waste Toner Bottle IM C6000 Unit Packaging: 1 - each Yield (CTN): 100,000 pages	No tooltip available.	418425
Staple Type S Cartridge for SR3330 (Normal and Saddle Stitch)Staple Type S Cartridge for SR3330 (Normal and Saddle Stitch) Staple Type S Unit Packaging: 5,000 per Crtg (1 Crtg/Ctn) Yield (CTN): 5,000 Note: Booklet Finisher SR3330 must be selected to add this supply.	Staple Type S Cartridge for SR3330 (Normal and Saddle Stitch) At least one of the item(s) below must be selected to be able to select this item: Booklet Finisher SR3330 (1,000 sheet) (419397)	412874

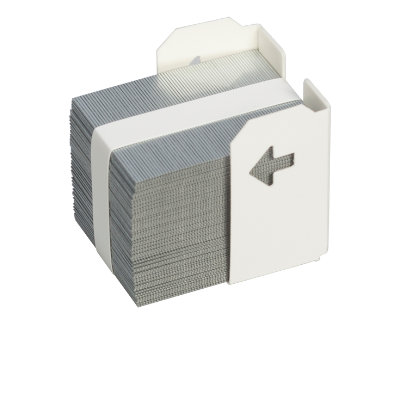

Staple Type K Refill Cartridge for SR3330 (Normal and Saddle Stitch)Staple Type K Refill Cartridge for SR3330 (Normal and Saddle Stitch) Refill Staple Type K Unit Packaging: 5,000 per Crtg (3 Crtg/Ctn) Yield (CTN): 15,000 Note: Booklet Finisher SR3330 must be selected to add this supply.	Staple Type K Refill Cartridge for SR3330 (Normal and Saddle Stitch) At least one of the item(s) below must be selected to be able to select this item: Booklet Finisher SR3330 (1,000 sheet) (419397)	410802

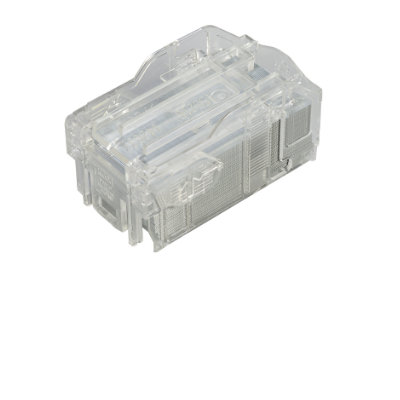

Staple Type T Cartridge for SR3310/SR3320Staple Type T Cartridge for SR3310/SR3320 Staple Type T Unit Packaging: 5,000 per Crtg (1 Crtg/Ctn) Yield (CTN): 5,000 Note: Internal Finisher SR3310 or Finisher SR3320 must be selected to add this supply.	Staple Type T Cartridge for SR3310/SR3320 At least one of the item(s) below must be selected to be able to select this item: Internal Finisher SR3310 (500 sheet) (419401) Finisher SR3320 (1,000 sheet) (419399)	415009
Staple Type T Refill Cartridge for SR3310/SR3320Staple Type T Refill Cartridge for SR3310/SR3320 Refill Staple Type T Unit Packaging: 5,000 per Crtg (2 Crtg/Ctn) Yield (CTN): 10,000 Note: Internal Finisher SR3310 or Finisher SR3320 must be selected to add this supply.	Staple Type T Refill Cartridge for SR3310/SR3320 At least one of the item(s) below must be selected to be able to select this item: Internal Finisher SR3310 (500 sheet) (419401) Finisher SR3320 (1,000 sheet) (419399)	415010
