RICOH Online Configurator

RICOH IM C4510/IM C6010

Multifunction Color

The IM C4510 and IM C6010 are engineered to meet the demands of your business. Present your very best work with superior color and image quality. Effortlessly scan files with a high-speed Single Pass Document Feeder. Do more in-house with advanced finishing options, enabling you to create stapled, stapleless and booklet documents. Tap in to a 10.1" Smart Operation Panel with highly-responsive technology that responds with pinpoint accuracy. Add apps as they become available and expand the device’s capabilities without new hardware. Perform a full range of multifunction actions directly from your smartphone or tablet — scan, print, digitize and share.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options. Non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail
	IM C4510IM C4510 Output Speed (Letter): 45-ppm Maximum Monthly Volume: 50,000 impressions/month (Letter paper, 20 lb.) Power Requirements: 120V-127V, 60Hz Weight: 222.2 lbs. (100.8 kg) W × D × H (inches): 23.1 × 27.6 × 37.9 W × D × H (mm): 587 × 701 × 963 Note: 1. In order to complete a configuration, one of the following must be installed on the mainframe: Paper Feed Unit PB3320, LCIT PB3330 or Cabinet Type A5. 2. This model has been Common Criteria certified.	No tooltip available.	419320
	IM C6010IM C6010 Output Speed (Letter): 60-ppm Maximum Monthly Volume: 50,000 impressions/month (Letter paper, 20 lb.) Power Requirements: 120V-127V, 60Hz Weight: 222.2 lbs. (100.8 kg) W × D × H (inches): 23.1 × 27.6 × 37.9 W × D × H (mm): 587 × 701 × 963 Note: 1. In order to complete a configuration, one of the following must be installed on the mainframe: Paper Feed Unit PB3320, LCIT PB3330 or Cabinet Type A5. 2. IM C6010 cannot be installed with Internal Finisher SR3310. 3. This model has been Common Criteria certified.	IM C6010 The item(s) below are not compatible with this option and cannot be selected: Internal Finisher SR3310 (500 sheet) (419401) Punch Unit PU3100 NA (419403)	419331

Step 2: Paper Tray & Optional Accessories

Item/Description	Tips	Item #
Paper Feed Unit PB3320Paper Feed Unit PB3320 Provides an additional 1,100 sheets. Paper sizes from 5.5" × 8.5" to 12" × 18". Paper weights up to 80 lb./166 lb. Index (300 g/m²). Weight: 50.7 lbs. (23 kg) W × D × H (inches): 23.1 × 27 × 9.7 W × D × H (mm): 587 × 686 × 246 Note: Paper Feed Unit PB3320 cannot be installed with LCIT PB3330 or Cabinet Type A5.	Paper Feed Unit PB3320 The item(s) below are not compatible with this option and cannot be selected: LCIT PB3330 (419374) Cabinet Type A5 (52721)	419365
LCIT PB3330LCIT PB3330 Provides an additional 2,000 sheets. Paper sizes up to 8.5" × 11"/A4. Paper weights up to 80 lb./166 lb. Index (300 g/m²). Weight: 50.7 lbs. (23 kg) W × D × H (inches): 23.1 × 27 × 9.7 W × D × H (mm): 587 × 686 × 246 Note: LCIT PB3330 cannot be installed with Paper Feed Unit PB3320 or Cabinet Type A5.	LCIT PB3330 The item(s) below are not compatible with this option and cannot be selected: Paper Feed Unit PB3320 (419365) Cabinet Type A5 (52721)	419374
LCIT RT3050LCIT RT3050 A side large capacity tray that provides an additional 1,500 sheets. Supports paper sizes of 8.5" × 11"/A4 only. Paper weights up to 80 lb./166 lb. Index (300 g/m²). Weight: 23.1 lbs. (10.5 kg) W × D × H (inches): 13.4 × 21.4 × 11.4 W × D × H (mm): 340 × 544 × 290 Note: 1. Paper Feed Unit PB3320 or LCIT PB3330 must be selected to add this option. 2. LCIT RT3050 cannot be installed with Cabinet Type A5.	LCIT RT3050 At least one of the item(s) below must be selected to be able to select this item: Paper Feed Unit PB3320 (419365) LCIT PB3330 (419374)	419378
Cabinet Type A5Cabinet Type A5 Provides a convenient option for the storage of supplies and paper. Can only be configured with the standard configuration. Weight: 29.0 lbs. (13.2 kg) W × D × H (inches): 23.1 × 27 × 9.7 W × D × H (mm): 587 × 686 × 246 Note: Cabinet Type A5 cannot be installed with Paper Feed Unit PB3320, LCIT PB3330 or LCIT RT3050.	Cabinet Type A5 The item(s) below are not compatible with this option and cannot be selected: Paper Feed Unit PB3320 (419365) LCIT PB3330 (419374) LCIT RT3050 (419378)	52721

Step 3: Output & Finishing Options

Internal
	Item/Description	Tips	Item #	Thumbnail
	1 Bin Tray BN31401 Bin Tray BN3140 Provides an additional output tray above the standard Internal Tray, optional Internal Finisher, optional Multi-Fold Unit, optional Internal Shift Tray or optional Bridge Unit. Holds 125 sheets. Allows user to separate print and fax output from copy. Supports paper sizes up to 12.6" × 17.7". Weight: 3.1 lbs. (1.4 kg) W × D × H (inches): 17.5 × 17.7 × 5.9 W × D × H (mm): 445 × 450 × 150	No tooltip available.	419383
	Internal Finisher SR3310 (500 sheet)Internal Finisher SR3310 (500 sheet) The 500-sheet Internal Finisher provides multi-position stapling and optional hole punching. Recommended for offices with limited floor space. Supports paper sizes up to 12" × 18". Weight: 28.2 lbs. (12.8 kg) W × D × H (inches): 21.5 × 20.6 × 6.7 W × D × H (mm): 546 × 523 × 170 Note: 1. Internal Finisher SR3310 cannot be installed with Internal Multi-Fold Unit FD3020, Internal Shift Tray SH3090, Bridge Unit BU3100, Finisher SR3320, Finisher SR3340, Booklet Finisher SR3330 or any related options. 2. This option cannot be installed on the IM C6010.	Internal Finisher SR3310 (500 sheet) The item(s) below are not compatible with this option and cannot be selected: Internal Multi-Fold Unit FD3020 (419409) Internal Shift Tray SH3090 (419385) Bridge Unit BU3100 (419381) Finisher SR3320 (1,000 sheet) (419399) Finisher SR3340 (3,000 sheet) (419392) Booklet Finisher SR3330 (1,000 sheet) (419397) Punch Unit PU3080 NA (418381) Punch Unit PU3110 NA (419438) Stapleless Unit Type M52 (419395) Staple Set Cartridge for SR3330 (412874) Staple Refill Cartridge for SR3330 (410802) Staple Set Cartridge for SR3340 (416709) Staple Refill Cartridge for SR3340 (416711)	419401
	Internal Multi-Fold Unit FD3020Internal Multi-Fold Unit FD3020 Allows for the creation of professionally designed finished documents such as newsletters, brochures and sales and marketing materials. Folding patterns include Z-Fold, Half-Fold and Tri-Fold. The unit can tri-fold up to 3 letter-sized sheets at a time. This option can be added to the configuration with or without an external finisher. No Bridge Unit is required. Paper sizes up to 12" × 18". Weight: 35.3 lbs. (16 kg) W × D × H (inches): 24.1 × 21.9 × 7.2 W × D × H (mm): 612 × 556 × 183 Note: 1. This option or Bridge Unit BU3100 must be installed when adding Finisher SR3320, Finisher SR3340 or Booklet Finisher SR3330. 2. Internal Multi-Fold Unit FD3020 cannot be installed with Internal Finisher SR3310, Internal Shift Tray SH3090, Bridge Unit BU3100 or any related options.	Internal Multi-Fold Unit FD3020 The item(s) below are not compatible with this option and cannot be selected: Internal Finisher SR3310 (500 sheet) (419401) Internal Shift Tray SH3090 (419385) Bridge Unit BU3100 (419381) Punch Unit PU3100 NA (419403)	419409
	Internal Shift Tray SH3090Internal Shift Tray SH3090 The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job. Holds 250 sheets of 8.5" × 11"/A4 or smaller and holds 125 sheets of 8.5" × 14" or larger. Supports paper sizes up to 12" × 18". Weight: 3.1 lbs. (1.3 kg) W × D × H (inches): 16.5 × 19.3 × 4.2 W × D × H (mm): 419 × 490 × 107 Note: Internal Shift Tray SH3090 cannot be installed with Internal Finisher SR3310, Internal Multi-Fold Unit FD3020, Bridge Unit BU3100, Finisher SR3320, Finisher SR3340, Booklet Finisher SR3330 or any related options.	Internal Shift Tray SH3090 The item(s) below are not compatible with this option and cannot be selected: Internal Finisher SR3310 (500 sheet) (419401) Internal Multi-Fold Unit FD3020 (419409) Bridge Unit BU3100 (419381) Finisher SR3320 (1,000 sheet) (419399) Finisher SR3340 (3,000 sheet) (419392) Booklet Finisher SR3330 (1,000 sheet) (419397) Punch Unit PU3080 NA (418381) Punch Unit PU3100 NA (419403) Punch Unit PU3110 NA (419438) Stapleless Unit Type M52 (419395) Staple Set Cartridge for SR3310/SR3320 (415009) Staple Refill Cartridge for SR3310/SR3320 (415010) Staple Set Cartridge for SR3330 (412874) Staple Refill Cartridge for SR3330 (410802) Staple Set Cartridge for SR3340 (416709) Staple Refill Cartridge for SR3340 (416711)	419385
External
	Item/Description	Tips	Item #	Thumbnail
	Finisher SR3320 (1,000 sheet)Finisher SR3320 (1,000 sheet) 1,000-sheet Finisher. For offices that produce collated and stapled sets of documents, this finisher helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole punching and shift-sort collating, as well as a staple-less binding capability of up to 5 sheets. Supports paper sizes up to 12" × 18". Weight: 75 lbs. (34 kg) W × D × H (inches): 22.6 × 26.2 × 37.8 W × D × H (mm): 574 × 665 × 960 Note: 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option. 2. Finisher SR3320 cannot be installed with Internal Shift Tray SH3090, Internal Finisher SR3310, Finisher SR3340, Booklet Finisher SR3330 or any related options.	Finisher SR3320 (1,000 sheet) The item(s) below are not compatible with this option and cannot be selected: Finisher SR3340 (3,000 sheet) (419392) Booklet Finisher SR3330 (1,000 sheet) (419397) Punch Unit PU3110 NA (419438) Stapleless Unit Type M52 (419395) Staple Set Cartridge for SR3330 (412874) Staple Refill Cartridge for SR3330 (410802) Staple Set Cartridge for SR3340 (416709) Staple Refill Cartridge for SR3340 (416711)	419399
	Finisher SR3340 (3,000 sheet)Finisher SR3340 (3,000 sheet) 3,000-sheet Finisher. For offices that produce collated and stapled sets of documents, this finisher helps shorten production time. It offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole punching and shift-sort collating. Supports paper sizes up to 12" × 18". Weight: 83.8 lbs. (38 kg) W × D × H (inches): 25.6 × 26.4 × 37.8 W × D × H (mm): 650 × 671 × 960 Note: 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option. 2. Finisher SR3340 cannot be installed with Internal Shift Tray SH3090, Internal Finisher SR3310, Finisher SR3320, Booklet Finisher SR3330 or any related options.	Finisher SR3340 (3,000 sheet) The item(s) below are not compatible with this option and cannot be selected: Finisher SR3320 (1,000 sheet) (419399) Booklet Finisher SR3330 (1,000 sheet) (419397) Punch Unit PU3080 NA (418381) Staple Set Cartridge for SR3310/SR3320 (415009) Staple Refill Cartridge for SR3310/SR3320 (415010) Staple Set Cartridge for SR3330 (412874) Staple Refill Cartridge for SR3330 (410802)	419392
	Booklet Finisher SR3330 (1,000 sheet)Booklet Finisher SR3330 (1,000 sheet) 1,000-sheet Booklet Finisher. Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters and meeting agendas. Supports paper sizes up to 12" × 18". Weight: 95.9 lbs. (43.5 kg) W × D × H (inches): 22.6 × 24.4 × 37.8 W × D × H (mm): 574 × 620 × 960 Note: 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option. 2. Booklet Finisher SR3330 cannot be installed with Internal Shift Tray SH3090, Internal Finisher SR3310, Finisher SR3320, Finisher SR3340 or any related options.	Booklet Finisher SR3330 (1,000 sheet) The item(s) below are not compatible with this option and cannot be selected: Finisher SR3320 (1,000 sheet) (419399) Finisher SR3340 (3,000 sheet) (419392) Punch Unit PU3110 NA (419438) Stapleless Unit Type M52 (419395) Staple Set Cartridge for SR3310/SR3320 (415009) Staple Refill Cartridge for SR3310/SR3320 (415010) Staple Set Cartridge for SR3340 (416709) Staple Refill Cartridge for SR3340 (416711)	419397
	Bridge Unit BU3100Bridge Unit BU3100 A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for inline stapling or hole punching. Note: 1. Finisher SR3320, Finisher SR3340 or Booklet Finisher SR3330 must be selected to add this option. 2. Bridge Unit BU3100 cannot be installed with Internal Finisher SR3310, Internal Multi-Fold Unit FD3020, Internal Shift Tray SH3090 or any related options.	Bridge Unit BU3100 At least one of the item(s) below must be selected to be able to select this item: Finisher SR3320 (1,000 sheet) (419399) Finisher SR3340 (3,000 sheet) (419392) Booklet Finisher SR3330 (1,000 sheet) (419397) The item(s) below are not compatible with this option and cannot be selected: Internal Finisher SR3310 (500 sheet) (419401) Internal Multi-Fold Unit FD3020 (419409) Internal Shift Tray SH3090 (419385) Punch Unit PU3100 NA (419403)	419381
Stapleless Stapling Option
	Item/Description	Tips	Item #	Thumbnail
	Stapleless Unit Type M52Stapleless Unit Type M52 Adds the capability for stapleless stapling to the Finisher SR3340. Note: Finisher SR3340 must be selected to add this option.	Stapleless Unit Type M52 At least one of the item(s) below must be selected to be able to select this item: Finisher SR3340 (3,000 sheet) (419392)	419395
Hole Punching Options
	Item/Description	Tips	Item #	Thumbnail
	Punch Unit PU3100 NAPunch Unit PU3100 NA Optional hole punching for Internal Finisher SR3310. Supports paper sizes up to 11" × 17". Note: Internal Finisher SR3310 must be selected to add this option.	Punch Unit PU3100 NA At least one of the item(s) below must be selected to be able to select this item: Internal Finisher SR3310 (500 sheet) (419401)	419403
	Punch Unit PU3080 NAPunch Unit PU3080 NA Optional hole punching for Finisher SR3320 or Booklet Finisher SR3330. Supports paper sizes up to 11" × 17". Note: Finisher SR3320 or Booklet Finisher SR3330 must be selected to add this option.	Punch Unit PU3080 NA At least one of the item(s) below must be selected to be able to select this item: Finisher SR3320 (1,000 sheet) (419399) Booklet Finisher SR3330 (1,000 sheet) (419397)	418381
	Punch Unit PU3110 NAPunch Unit PU3110 NA Optional hole punching for Finisher SR3340. Supports paper sizes up to 11" × 17". Note: Finisher SR3340 must be selected to add this option.	Punch Unit PU3110 NA At least one of the item(s) below must be selected to be able to select this item: Finisher SR3340 (3,000 sheet) (419392)	419438

Step 4: Print/Scan Options

Item/Description	Tips	Item #
IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52 Allows the device to connect to the network over WiFi. Useful for temporary sites and locations where cabling is impractical. Note: IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52 cannot be installed with Color Controller E-26C or any related options.	IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52 The item(s) below are not compatible with this option and cannot be selected: Color Controller E-26C (419419) EFI Impose Digital (3000013503-PS1) EFI Compose Digital (3000013504-PS1) Hot Folders Type FS-100 (404600) Spot On Type FS100 (404601) Auto Trap Type FS-100 (404602) EFI CPS V5.X ES-3000 1 year Digital (3000013158) EFI ES-3000 (45202146) EFI Productivity Pack for Fiery E22b E22c (007183MIU)	423571
OCR Unit Type M52OCR Unit Type M52 This function embeds invisible texts on scanned images of PDFs and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders and external media (USB). Supports blank page removal when scanning.	No tooltip available.	419445
IPDS Unit Type M52IPDS Unit Type M52 Intelligent Printer Data Stream (IPDS) option supports bi-directional host printing in IBM iSeries and zSeries systems environments. Note: IPDS Unit Type M52 cannot be installed with Color Controller E-26C or any related options.	IPDS Unit Type M52 The item(s) below are not compatible with this option and cannot be selected: Color Controller E-26C (419419) EFI Impose Digital (3000013503-PS1) EFI Compose Digital (3000013504-PS1) Hot Folders Type FS-100 (404600) Spot On Type FS100 (404601) Auto Trap Type FS-100 (404602) EFI CPS V5.X ES-3000 1 year Digital (3000013158) EFI ES-3000 (45202146) EFI Productivity Pack for Fiery E22b E22c (007183MIU)	419434
PostScript3 Unit Type M52PostScript3 Unit Type M52 Genuine Adobe^® PostScript^®3™. Recommended for printing more complex color and PDF files. The IM C4510 and IM C6010 come with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe^® workflows like Photoshop^®, Illustrator^® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled. Note: PostScript3 Unit Type M52 cannot be installed with Color Controller E-26C or any related options.	PostScript3 Unit Type M52 The item(s) below are not compatible with this option and cannot be selected: Color Controller E-26C (419419) EFI Impose Digital (3000013503-PS1) EFI Compose Digital (3000013504-PS1) Hot Folders Type FS-100 (404600) Spot On Type FS100 (404601) Auto Trap Type FS-100 (404602) EFI CPS V5.X ES-3000 1 year Digital (3000013158) EFI ES-3000 (45202146) EFI Productivity Pack for Fiery E22b E22c (007183MIU)	419416

Step 5: Fax Options

Item/Description	Tips	Item #
Fax Option Type M52Fax Option Type M52 Installation required to enable fax services: 33.6 kbps, approximately 3 second transmission speed, standard JBIG and standard 320 Pages Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.	No tooltip available.	419423
G3 Interface Unit Type M52G3 Interface Unit Type M52 Required to add an additional fax line. Up to two units can be installed. Note: Fax Option Type M52 must be selected to add this option.	G3 Interface Unit Type M52 At least one of the item(s) below must be selected to be able to select this item: Fax Option Type M52 (419423)	419427
Fax Memory Unit Type M52Fax Memory Unit Type M52 Increases fax memory to 4,800 pages and fax resolution to 400 × 400 dpi. Note: Fax Option Type M52 must be selected to add this option.	Fax Memory Unit Type M52 At least one of the item(s) below must be selected to be able to select this item: Fax Option Type M52 (419423)	419430

Step 6: Controller & Options

Item/Description	Tips	Item #
Color Controller E-26CColor Controller E-26C Optional Fiery^® color controller that can be configured with the standard Print/Scan controller for embedded scan features and Fiery print. Includes connector. Note: Color Controller E-26C cannot be installed with IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52, IPDS Unit Type M52, PostScript3 Unit Type M52 or Unicode Font Package for SAP^® 1 License.	Color Controller E-26C The item(s) below are not compatible with this option and cannot be selected: IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52 (423571) PostScript3 Unit Type M52 (419416) Unicode Font Package for SAP^® 1 License (413009) IPDS Unit Type M52 (419434)	419419
EFI Impose DigitalEFI Impose Digital Fiery option that helps to automate and streamline labor-intensive prepress tasks. Note: Color Controller E-26C must be selected to add this option.	EFI Impose Digital At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	3000013503-PS1
EFI Compose DigitalEFI Compose Digital Fiery option that provides intuitive tools that make advanced document preparation simple and quick. Note: Color Controller E-26C must be selected to add this option.	EFI Compose Digital At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	3000013504-PS1
Hot Folders Type FS-100Hot Folders Type FS-100 Fiery option that enables the creation of special folders that can assign a group of print options. Note: Color Controller E-26C must be selected to add this option.	Hot Folders Type FS-100 At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	404600
Spot On Type FS100Spot On Type FS100 Fiery option that enables you to reproduce custom or spot colors. Note: Color Controller E-26C must be selected to add this option.	Spot On Type FS100 At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	404601
Auto Trap Type FS-100Auto Trap Type FS-100 Fiery option that provides a fast and simple way to ensure that your image output is optimized. Note: Color Controller E-26C must be selected to add this option.	Auto Trap Type FS-100 At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	404602
EFI CPS V5.X ES-3000 1 year DigitalEFI CPS V5.X ES-3000 1 year Digital Fiery option that contains Color Profiler software and ES-3000 spectrophotometer: Includes 1 year of phone support. Note: Color Controller E-26C must be selected to add this option.	EFI CPS V5.X ES-3000 1 year Digital At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	3000013158
EFI ES-3000EFI ES-3000 Color measurement device for calibration and profiling. Enables fast, precise and flexible color management that produces the highest color quality. Note: Color Controller E-26C must be selected to add this option.	EFI ES-3000 At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	45202146
EFI Productivity Pack for Fiery E22b E22cEFI Productivity Pack for Fiery E22b E22c Fiery option aids in workflow productivity — helps meet tight turnaround times/produce top notch color documents while achieving process automation. Note: Color Controller E-26C must be selected to add this option.	EFI Productivity Pack for Fiery E22b E22c At least one of the item(s) below must be selected to be able to select this item: Color Controller E-26C (419419)	007183MIU

Step 7: Security & Miscellaneous Accessories

Item/Description	Tips	Item #
Power Filter with Inrush, Surge and Noise Protection 120V/15APower Filter with Inrush, Surge and Noise Protection 120V/15A Designed to provide a higher level of noise filtering and surge protection for devices that employ more sensitive and complex electronic components. Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products.	No tooltip available.	W1500-15-120

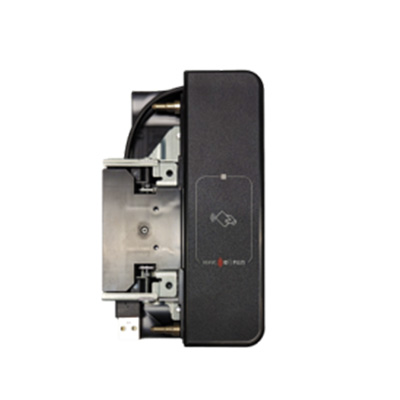

Card Reader Cover Type M52Card Reader Cover Type M52 For use with Ricoh and 3^rd party software solutions. The Card Reader Cover attaches to the right-hand side of the Smart Operation Panel. A card reader is not included. Not all card readers may be supported.	No tooltip available.	419413
Optional Counter Interface Unit Type M12Optional Counter Interface Unit Type M12 20-pin interface used to attach external key counter or key card device.	No tooltip available.	417111
Enhanced Security SSD Option Type M52 256 GBEnhanced Security SSD Option Type M52 256 GB An optional FIPS 140-2 validated 256 GB Solid State Drive. This option will replace the standard 256 GB Solid State Drive when added to the configuration. Note: Enhanced Security SSD Option Type M52 256 GB cannot be installed with HDD Option Type M52 320 GB.	Enhanced Security SSD Option Type M52 256 GB The item(s) below are not compatible with this option and cannot be selected: HDD Option Type M52 320 GB (419435)	419436
HDD Option Type M52 320 GBHDD Option Type M52 320 GB Optional 320 GB Hard Disk Drive required to enable DOSS and IEEE 2600.1 certification. This option will replace the standard 256 GB Solid State Drive when added to the configuration. The IM C4510 and IM C6010 have not yet been IEEE 2600.1 certified. Note: HDD Option Type M52 320 GB cannot be installed with Enhanced Security SSD Option Type M52 256 GB.	HDD Option Type M52 320 GB The item(s) below are not compatible with this option and cannot be selected: Enhanced Security SSD Option Type M52 256 GB (419436)	419435

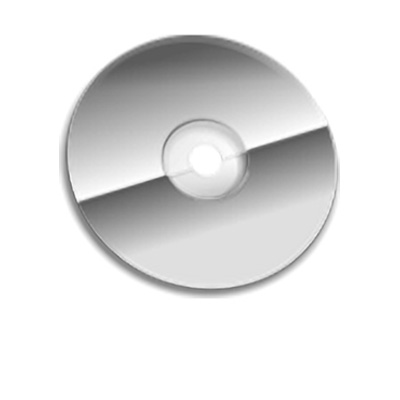

Unicode Font Package for SAP^® 1 LicenseUnicode Font Package for SAP^® 1 License Unicode Font Package for SAP - 1 seat license. Note: Unicode Font Package for SAP^® 1 License cannot be installed with Color Controller E-26C or any related options.	Unicode Font Package for SAP^® 1 License The item(s) below are not compatible with this option and cannot be selected: Color Controller E-26C (419419) EFI Impose Digital (3000013503-PS1) EFI Compose Digital (3000013504-PS1) Hot Folders Type FS-100 (404600) Spot On Type FS100 (404601) Auto Trap Type FS-100 (404602) EFI CPS V5.X ES-3000 1 year Digital (3000013158) EFI ES-3000 (45202146) EFI Productivity Pack for Fiery E22b E22c (007183MIU)	413009

Please Note:

The mainframe does not ship standard with starter toners. For maximum performance and yield, we recommend using genuine Ricoh Family Group-branded parts and supplies.

Step 8: Supplies

Item/Description	Tips	Item #
Print Cartridge Black IM C6010Print Cartridge Black IM C6010 Black toner Unit Packaging: 1 bottle (575 g) Yield (CTN): 42,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842526
Print Cartridge Yellow IM C6010Print Cartridge Yellow IM C6010 Yellow toner Unit Packaging: 1 bottle (439 g) Yield (CTN): 28,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842527
Print Cartridge Magenta IM C6010Print Cartridge Magenta IM C6010 Magenta toner Unit Packaging: 1 bottle (507 g) Yield (CTN): 28,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842528
Print Cartridge Cyan IM C6010Print Cartridge Cyan IM C6010 Cyan toner Unit Packaging: 1 bottle (438 g) Yield (CTN): 28,000 pages Based on printing on letter paper with 5% coverage.	No tooltip available.	842529
Staple Set Cartridge for SR3330Staple Set Cartridge for SR3330 Staple Type S Unit Packaging: 5,000 per Crtg. (1 Crtg/Ctn) Yield (CTN): 5,000 Note: Booklet Finisher SR3330 must be selected to add this supply.	Staple Set Cartridge for SR3330 At least one of the item(s) below must be selected to be able to select this item: Booklet Finisher SR3330 (1,000 sheet) (419397)	412874
Staple Refill Cartridge for SR3330Staple Refill Cartridge for SR3330 Refill Staple Type K Unit Packaging: 5,000 per Crtg. (3 Crtg/Ctn) Yield (CTN): 15,000 Note: Booklet Finisher SR3330 must be selected to add this supply.	Staple Refill Cartridge for SR3330 At least one of the item(s) below must be selected to be able to select this item: Booklet Finisher SR3330 (1,000 sheet) (419397)	410802
Staple Set Cartridge for SR3310/SR3320Staple Set Cartridge for SR3310/SR3320 Staple Type T Unit Packaging: 5,000 per Crtg. (1 Crtg/Ctn) Yield (CTN): 5,000 Note: Internal Finisher SR3310 or Finisher SR3320 must be selected to add this supply.	Staple Set Cartridge for SR3310/SR3320 At least one of the item(s) below must be selected to be able to select this item: Internal Finisher SR3310 (500 sheet) (419401) Finisher SR3320 (1,000 sheet) (419399)	415009
Staple Refill Cartridge for SR3310/SR3320Staple Refill Cartridge for SR3310/SR3320 Refill Staple Type T Unit Packaging: 5,000 per Crtg. (2 Crtg/Ctn) Yield (CTN): 10,000 Note: Internal Finisher SR3310 or Finisher SR3320 must be selected to add this supply.	Staple Refill Cartridge for SR3310/SR3320 At least one of the item(s) below must be selected to be able to select this item: Internal Finisher SR3310 (500 sheet) (419401) Finisher SR3320 (1,000 sheet) (419399)	415010
Staple Set Cartridge for SR3340Staple Set Cartridge for SR3340 Staple Type V Unit Packaging: 5,000 per Crtg. (1 Crtg/Ctn) Yield (CTN): 5,000 Note: Finisher SR3340 must be selected to add this supply.	Staple Set Cartridge for SR3340 At least one of the item(s) below must be selected to be able to select this item: Finisher SR3340 (3,000 sheet) (419392)	416709
Staple Refill Cartridge for SR3340Staple Refill Cartridge for SR3340 Refill Staple Type V Unit Packaging: 5,000 per Crtg. (3 Crtg/Ctn) Yield (CTN): 15,000 Note: Finisher SR3340 must be selected to add this supply.	Staple Refill Cartridge for SR3340 At least one of the item(s) below must be selected to be able to select this item: Finisher SR3340 (3,000 sheet) (419392)	416711
Waste Toner Bottle IM C6000Waste Toner Bottle IM C6000 Unit Packaging: 1 - each Yield (CTN): 100,000 pages	No tooltip available.	418425
