IM C530FB SYSTEM CONFIGURATOR

Visit Ricoh-USA.com

Ricoh Online System Configurator Tool

Choose a Model• Select Options • Save, Print or Email

RICOH IM C530FB

Multifunction Color

The IM C530FB color multifunction printer is specifically designed to boost your team’s productivity efficiently and effectively. Toggle between tasks effortlessly with the intuitive and user-friendly 7" Smart Operation Panel. Meet expectations as quickly as possible with workflow apps that connect your printer to your preferred third-party cloud services. Print on a wide range of media, including thicker stocks at sizes up to 8.5" x 14", with bright colors, sharp text and clear images via 1200 x 1200 dpi resolution. Plus, with our Always Current Technology, new software features, applications and upgrades can be downloaded and installed directly to your device on request. This way, the ever-changing needs of your business are promptly met.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail

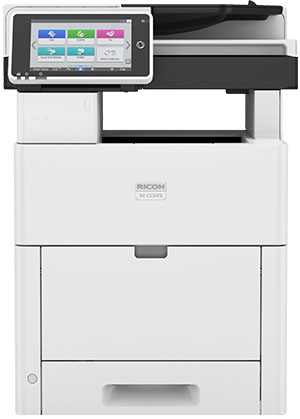

	IM C530FBIM C530FB Output Speed (Letter): 55-ppm Average Monthly Volume: 4,000 impressions/month Maximum Monthly Volume: 10,000 impressions/month Power Requirements: 120V – 127V, 12A, 60Hz Ships with Starter Toner that yields 7,500 B&W prints/4,500 Color prints (The declared yield value is based on A4 paper, 5% coverage, 3 P/J). Weight: 83.8 lbs. (38 kg) W × D × H (inches): 18.5 × 19.8 × 25.3 W × D × H (mm): 470 × 503 × 643	No tooltip available.	418223

Step 2: Paper Tray & Cabinet Options

Item/Description	Tips	Item #
Paper Feed Unit PB1180Paper Feed Unit PB1180 Provides an additional 550 sheets. Supports paper sizes up to 8.5" x 14". Paper weights up to 80 lb. Cover (220 g/m²). Weight: 14.3 lbs. (6.5 kg) W × D × H (inches): 16.54 × 18.29 × 4.84 W × D × H (mm): 420 × 465 × 123 Note: A maximum of four Paper Feed Unit PB1180 may be added to the system.	No tooltip available.	418229
LCIT PB1190LCIT PB1190 Provides an additional 2,000 sheets. Includes an integrated caster base to create a floor-standing configuration. Supports paper sizes of 8.5" x 11"/A4 only. Paper weights up to 65 lb. Cover (176 g/m²). Weight: 71.4 lbs. (32.39 kg) W × D × H (inches): 28.51 × 30.4 × 18.07 W × D × H (mm): 724 × 772 × 459	LCIT PB1190 The item(s) below are not compatible with this option and cannot be selected: Caster Table Type A1 (22820) Low Cabinet Type A2 (52830) Medium Cabinet Type A3 (52840)	418230
Caster Table Type A1Caster Table Type A1 The caster table must be added to the configuration when four optional Paper Feed Units PB1180 are installed. It provides a platform with wheels to easily move the device. Weight: 11 lbs. (5 kg) W × D × H (inches): 16.54 × 18.29 × 3.31 W × D × H (mm): 420 × 465 × 84 Note: 1. Caster Table Type A1 cannot be installed with the base unit, one, two or three paper feed units, LCIT PB1190, Low Cabinet Type A2 or Medium Cabinet Type A3. 2. Caster Table Type A1 can only be installed when the system is configured with four Paper Feed Units PB1180. If four Paper Feed Units PB1180 are not selected then this option cannot be added to your configuration.	Caster Table Type A1 The item(s) below are not compatible with this option and cannot be selected: LCIT PB1190 (418230) Low Cabinet Type A2 (52830) Medium Cabinet Type A3 (52840)	22820
Low Cabinet Type A2Low Cabinet Type A2 Raises the base unit to a comfortable height for a floor-standing configuration with storage when the system is configured with three optional Paper Feed Units PB1180. Weight: 24.3 lbs. (11 kg) W × D × H (inches): 16.54 × 18.29 × 9.84 W × D × H (mm): 420 × 465 × 250 Note: 1. Low Cabinet Type A2 cannot be installed with the base unit, one, two or four paper feed units, LCIT PB1190, Caster Table Type A1 or Medium Cabinet Type A3. 2. Low Cabinet Type A2 can only be installed when the base unit is configured with three optional Paper Feed Units PB1180. If three optional Paper Feed Units PB1180 are not selected then this option cannot be added to your configuration.	Low Cabinet Type A2 The item(s) below are not compatible with this option and cannot be selected: LCIT PB1190 (418230) Caster Table Type A1 (22820) Medium Cabinet Type A3 (52840)	52830
Medium Cabinet Type A3Medium Cabinet Type A3 Raises the base unit to a comfortable height for a floor-standing configuration with storage when the system is configured with two optional Paper Feed Units PB1180. Weight: 30.9 lbs. (14 kg) W × D × H (inches): 16.54 × 18.29 × 17.52 W × D × H (mm): 420 × 465 × 445 Note: 1. Medium Cabinet Type A3 cannot be installed with the base unit, one, three or four paper feed units, LCIT PB1190, Caster Table Type A1 or Low Cabinet Type A2. 2. Medium Cabinet Type A3 can only be installed when the base unit is configured with two optional Paper Feed Units PB1180. If two optional Paper Feed Units PB1180 are not selected then this option cannot be added to your configuration.	Medium Cabinet Type A3 The item(s) below are not compatible with this option and cannot be selected: LCIT PB1190 (418230) Caster Table Type A1 (22820) Low Cabinet Type A2 (52830)	52840

Step 3: Print/Scan Options

	Item/Description	Tips	Item #	Thumbnail
	IEEE 802.11 Interface Unit Type M43IEEE 802.11 Interface Unit Type M43 This option allows you to connect the device to an IEEE 802.11 a/g/n wireless LAN network.	No tooltip available.	418234

Step 4: Security & Miscellaneous Accessories

	Item/Description	Tips	Item #	Thumbnail
	ESP S1 Power FilterESP S1 Power Filter Provides multi-stage power protection for output devices. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.	No tooltip available.	ESPS1

Step 5: Supplies

Item/Description	Tips	Item #
Print Cartridge Black IM C530Print Cartridge Black IM C530 Unit Packaging: 1 - 213 g. bottle Yield = 20,500 pages The declared yield value is based on A4 paper, 5% coverage, 3 P/J. Actual yields may vary based on images printed and other factors. Note: Starter Toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	418236
Print Cartridge Cyan IM C530Print Cartridge Cyan IM C530 Unit Packaging: 1 - 213 g. bottle Yield = 18,000 pages The declared yield value is based on A4 paper, 5% coverage, 3 P/J. Actual yields may vary based on images printed and other factors. Note: Starter Toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	418237
Print Cartridge Magenta IM C530Print Cartridge Magenta IM C530 Unit Packaging: 1 - 213 g. bottle Yield = 18,000 pages The declared yield value is based on A4 paper, 5% coverage, 3 P/J. Actual yields may vary based on images printed and other factors. Note: Starter Toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	418238
Print Cartridge Yellow IM C530Print Cartridge Yellow IM C530 Unit Packaging: 1 - 213 g. bottle Yield = 18,000 pages The declared yield value is based on A4 paper, 5% coverage, 3 P/J. Actual yields may vary based on images printed and other factors. Note: Starter Toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	418239
Black Drum Unit IM C530Black Drum Unit IM C530 Unit Packaging: 1 - each Yield (CTN): 60,000 pages	No tooltip available.	418244
Cyan Drum Unit IM C530Cyan Drum Unit IM C530 Unit Packaging: 1 - each Yield (CTN): 60,000 pages	No tooltip available.	418245
Magenta Drum Unit IM C530Magenta Drum Unit IM C530 Unit Packaging: 1 - each Yield (CTN): 60,000 pages	No tooltip available.	418246
Yellow Drum Unit IM C530Yellow Drum Unit IM C530 Unit Packaging: 1 - each Yield (CTN): 60,000 pages	No tooltip available.	418247
Waste Toner Bottle IM C530Waste Toner Bottle IM C530 Unit Packaging: 1 - each Yield (CTN): 30,000 pages	No tooltip available.	418255

Complete Your Configuration

Start Over

Standard Features Include

7" Smart Operation Panel
Print, Scan, Copy and Fax capabilities
100-Sheet Single Pass Document Feeder
550-Sheet Paper Tray
150-Sheet Bypass Tray

2 GB RAM
32 GB Storage
Automatic Duplexing
Mobile Printing Capabilities: Airprint^®, Mopria™ and Ricoh Smart Device Connector

Show More Features

Current Configuration

W × D × H 0" × 0" × 0"
0mm × 0mm × 0mm

View Selected Items

This site is for informational purposes only and this site and any related services or products described herein are not intended to provide any legal, regulatory, compliance, or other similar advice. You are solely responsible for ensuring your own compliance with all legal, regulatory, compliance, or other similar obligations. While care has been taken to ensure the accuracy of this information, Ricoh makes no representation or warranties about the accuracy, completeness or adequacy of the information contained herein, and shall not be liable for any errors or omissions in these materials. Actual results will vary depending upon use of the products and services and the conditions and factors affecting performance. The only warranties for Ricoh products and services are as set forth in the express warranty statements accompanying them.
