RICOH M C320FW

Multifunction Color

Transform your office efficiency with the RICOH M C320FW — the ideal solution for space-conscious professionals seeking a compact yet powerful multifunctional color device. This is an affordable, mid-range tier, all-in-one printer that offers a scanner, copier and fax machine and is tailored for general office use handling low- to medium-volume tasks with high-quality output. It features full network connectivity, minimal power consumption and easy, no-hassle maintenance.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail

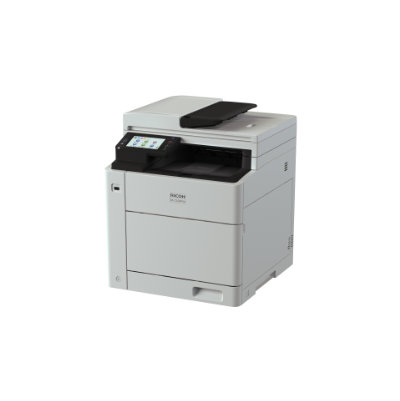

	M C320FWM C320FW Output Speed (Letter): 32 ppm Recommended Monthly Volume: 500 – 1,000 impressions/month Maximum Monthly Volume: 7,500 impressions/month Ships with starter toners that yield 2,500 B&W prints and 1,500 Color prints (Declared yield value in accordance with ISO/IEC 19798). Power Requirements: 120-127V 60Hz Weight: 65.8 lbs. (29.9 kg) W × D × H (inches): 16.2 × 16.9 × 19 W × D × H (mm): 411 × 429 × 483	No tooltip available.	423621

Step 2: Paper Tray & Optional Accessories

Item/Description	Tips	Item #

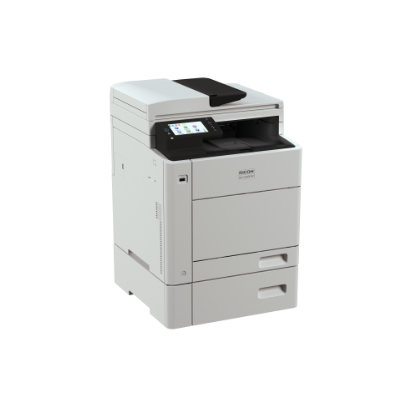

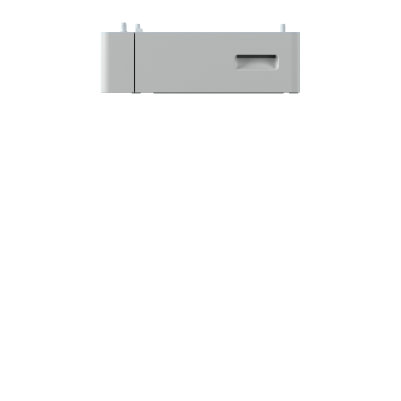

Paper Feed Unit PB1210 (1 × 500 Sheets)Paper Feed Unit PB1210 (1 × 500 Sheets) Provides an additional 500 sheets. Paper sizes up to 8.5" × 14"/LG. Paper weights up to 200 gsm. Weight: 13.2 lbs. (6 kg) Only one optional Paper Feed Unit PB1210 may be added to the mainframe. W × D × H (inches): 16.2 × 16.9 × 5 W × D × H (mm): 411 × 429 × 127	Paper Feed Unit PB1210 (1 × 500 Sheets) The item(s) below are not compatible with this option and cannot be selected: High Cabinet Type A10 (52009)	423678

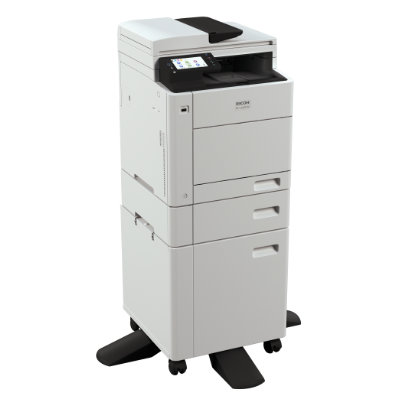

Low Cabinet Type A9Low Cabinet Type A9 Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper. Can only be configured with one optional paper feed unit. Weight: 25 lbs. (11.3 kg) W × D × H (inches): 16.9 × 16.1 × 17.6 W × D × H (mm): 429 × 409 × 447 Note: 1. Paper Feed Unit PB1210 (1 × 500 Sheets) must be selected to add this option. 2. Low Cabinet Type A9 cannot be installed with High Cabinet Type A10.	Low Cabinet Type A9 At least one of the item(s) below must be selected to be able to select this item: Paper Feed Unit PB1210 (1 × 500 Sheets) (423678)	52008

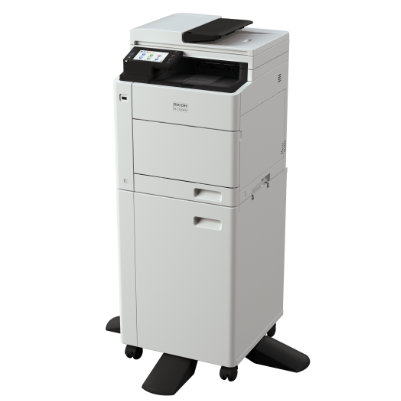

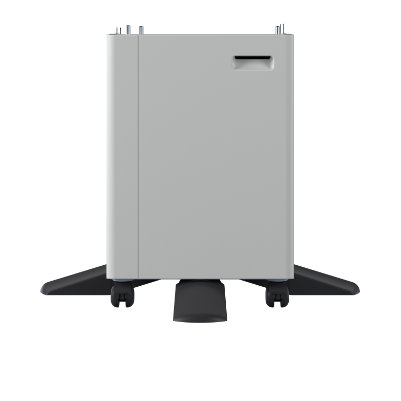

High Cabinet Type A10High Cabinet Type A10 Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper. Can only be configured with the mainframe. Weight: 31 lbs. (14.1 kg) W × D × H (inches): 16.9 × 16.1 × 23.6 W × D × H (mm): 429 × 409 × 599 Note: High Cabinet Type A10 cannot be installed with Paper Feed Unit PB1210 (1 × 500 Sheets) or Low Cabinet Type A9.	High Cabinet Type A10 The item(s) below are not compatible with this option and cannot be selected: Paper Feed Unit PB1210 (1 × 500 Sheets) (423678) Low Cabinet Type A9 (52008)	52009

Step 3: Security & Miscellaneous Accessories

	Item/Description	Tips	Item #	Thumbnail

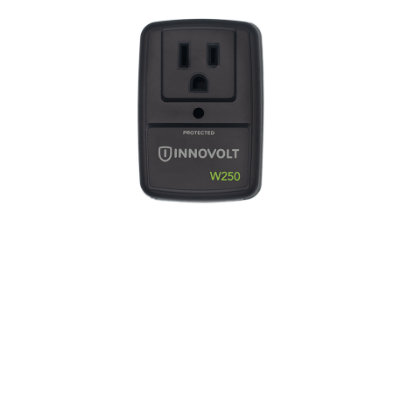

	Single Outlet Wall Mount Power Filter 120V/15ASingle Outlet Wall Mount Power Filter 120V/15A Wall-mounted power filter provides multi-stage power surge protection and noise filtering for output devices. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.	No tooltip available.	W250-15-120

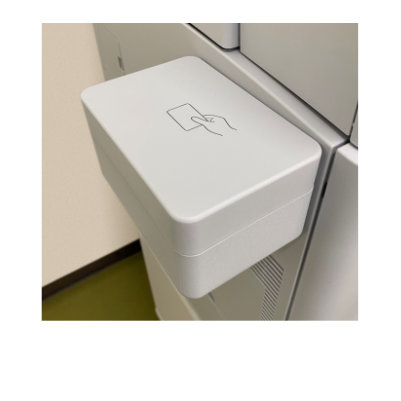

	Card Reader Cover Type M57Card Reader Cover Type M57 For use with third-party card readers. The Card reader cover attaches to the left‑hand side of the device. A card reader is not included; not all card readers may be supported. W × D × H (inches): 3.4 × 5 × 2.8 W × D × H (mm): 86 × 127 × 71	No tooltip available.	423661

Please Note:

The mainframe does ship standard with starter toners, ordering a second set is suggested for back up. For maximum performance and yield, we recommend using genuine Ricoh parts and supplies.

Step 4: Supplies

Item/Description	Tips	Item #

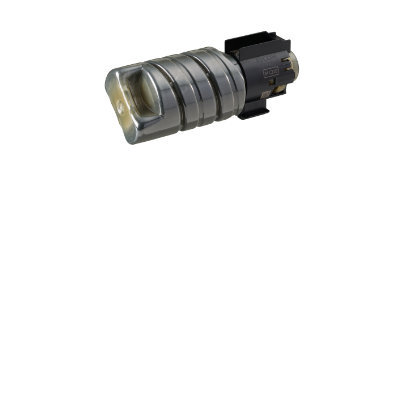

Print Cartridge Black M C320HPrint Cartridge Black M C320H Black toner Unit Packaging: 1 cartridge (132 g) Targeted Yield: 10,500 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors. Note: Starter toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	842679

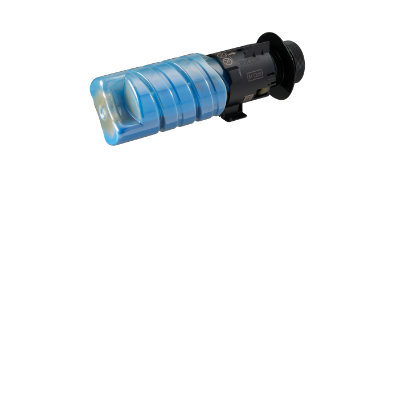

Print Cartridge Cyan M C320HPrint Cartridge Cyan M C320H Cyan toner Unit Packaging: 1 cartridge (87 g) Targeted Yield: 7,500 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors. Note: Starter toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	842680

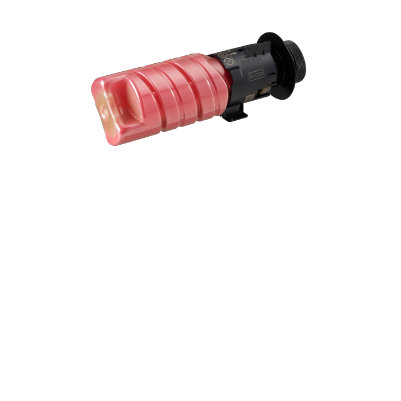

Print Cartridge Magenta M C320HPrint Cartridge Magenta M C320H Magenta toner Unit Packaging: 1 cartridge (99 g) Targeted Yield: 7,500 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors. Note: Starter toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	842681

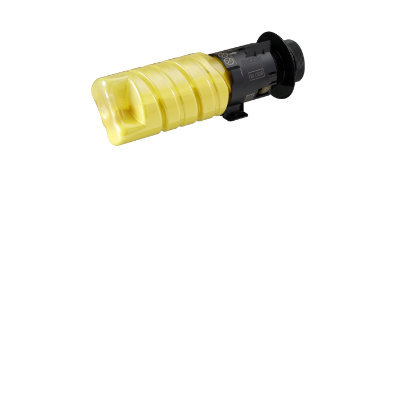

Print Cartridge Yellow M C320HPrint Cartridge Yellow M C320H Yellow toner Unit Packaging: 1 cartridge (99 g) Targeted Yield: 7,500 prints/cartridge; declared yield value in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors. Note: Starter toner is included with the mainframe, but we recommend ordering a second set for backup.	No tooltip available.	842682
Black Drum Unit M C320Black Drum Unit M C320 Unit Packaging: 1 - each Yield (CTN): 60,000 pages Based on printing on letter paper with 5% coverage; actual yields may vary based on images printed and other factors.	No tooltip available.	423648
Color Drum Unit M C320Color Drum Unit M C320 Unit Packaging: 1 - each Yield (CTN): 48,000 pages Based on printing on letter paper with 5% coverage; actual yields may vary based on images printed and other factors.	No tooltip available.	423649

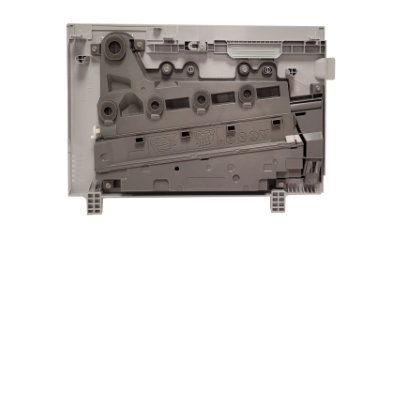

Waste Toner Bottle IM C320Waste Toner Bottle IM C320 Unit Packaging: 1 - each Yield (CTN): 11,000 pages Based on printing on letter paper with 5% coverage; actual yields may vary based on images printed and other factors.	No tooltip available.	423651

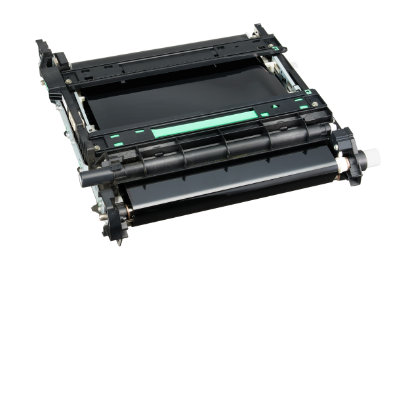

Transfer Unit M C320Transfer Unit M C320 Unit Packaging: 1 - each Yield (CTN): 100,000 pages Based on printing on letter paper with 5% coverage; actual yields may vary based on images printed and other factors.	No tooltip available.	423652

Complete Your Configuration

Start Over

Standard Features Include

4.3" Touch Panel
Print, Copy, Scan and Fax
250-Sheet Paper Tray
50-Sheet Bypass Tray
Automatic Duplexing

50-Sheet Single Pass Document Feeder
Wi-Fi

Show More Features

Current Configuration

W × D × H 0" × 0" × 0"
0mm × 0mm × 0mm
