RICOH Pro L5160e

Wide Format Color

The Pro L5160e is a roll-to-roll wide-format latex printer designed to give your business more productivity and an expanded color gamut with new orange and green inks. Hit specific brand colors, achieve lifelike skin tones and stun with vibrant graphics. Breakthrough media versatility lets you produce more applications, from window graphics and wall coverings to POP displays, outdoor banners and more. Gain the confidence to take on more work and meet tight turnarounds with the Pro L5160e, a printer that’s ideal for long production runs.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail

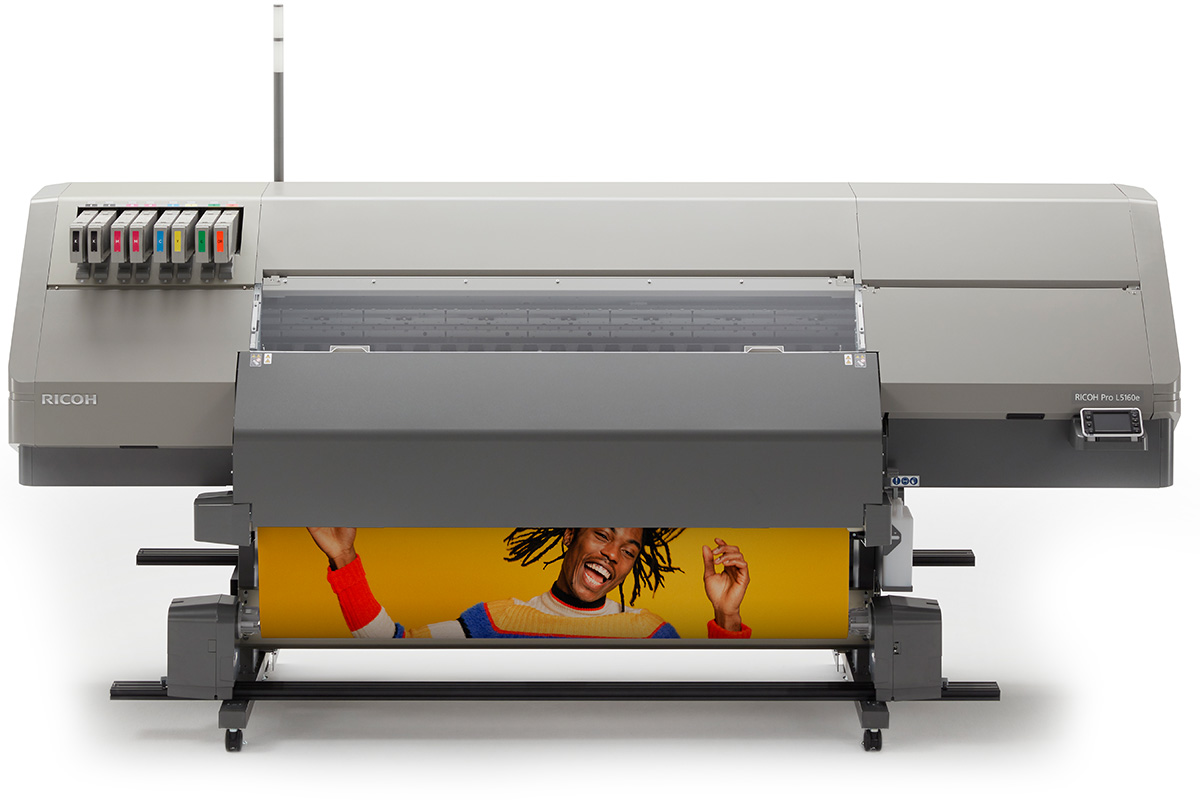

	Pro L5160ePro L5160e Output Speed (D-Size): 502.5 ft²/h in outdoor standard mode 6 pass / Up to 269 ft²/h in indoor standard mode 12 pass (print speeds are based on 4C CMYK Configuration). Maximum Power Consumption: Less than 6000W Maximum Print Width: 63.6" (1,615mm) Power Requirements: (2 dedicated power outlets required) 2X - AC208–240V, 16A, 50/60Hz Assembled dimensions include stand. Weight: 848.8 lbs. (385 kg) W × D × H (inches): 129.9 × 39.3 × 59 W × D × H (mm): 3,299 × 998 × 1,499	No tooltip available.	342362

Please Note:

Some options have been automatically preselected because these options are required to complete your configuration.

Step 2: Installation, Training & Kit Options

Item/Description	Tips	Item #
Ricoh InstallationRicoh Installation System installation is performed by trained Ricoh specialists and is a requirement. This option must be selected to complete your configuration. Freight and Rigging is required for delivery.	No tooltip available.	INSTALLSVCPROL5160R
Ricoh TrainingRicoh Training All installations require operator training performed by Ricoh specialists. Training covers hardware operation, print driver/RIP workflow, user maintenance and supply handling requirements. This option must be selected to complete your configuration.	No tooltip available.	PP-ISF-PROL5160
Freight and RiggingFreight and Rigging Required freight with the Pro L5160e. Note: Variable quote required for freight and rigging.	No tooltip available.	FREIGHT
CMYK Starter KitCMYK Starter Kit Select this option when the customer requires CMYK only. Starter Kit will include two 600ml cartridges each of cyan, magenta, yellow and black. 8 total cartridges. In addition, one flushing cartridge is included. Note: 1. This option, CMYK + W Starter Kit or CMYK + Or & Gr Starter Kit must be selected to complete your configuration. 2. CMYK Starter Kit cannot be installed with CMYK + W Starter Kit or CMYK + Or & Gr Starter Kit.	CMYK Starter Kit The item(s) below are not compatible with this option and cannot be selected: CMYK + W Starter Kit (SUS-CMYKW-L5160) CMYK + Or & Gr Starter Kit (SUS-CMYKORGR-L5160e) Pro AR Ink Cartridge White L5160 (344106) Pro AR Ink Cartridge White L5160 H (344111) Displacement Cartridge Type C2 (344116) Pro L5160e Color Upgrade Kit Type C3 (342373) Pro AR Ink Cartridge Orange L5160e (344104) Pro AR Ink Cartridge Green L5160e (344105)	SUS-CMYK-L5160
CMYK + W Starter KitCMYK + W Starter Kit Select this option when the customer requires CMYK plus White printing. Starter Kit will include four 600ml cartridges of white and one 600ml cartridge each of cyan, magenta, yellow and black. 8 total cartridges. In addition, one flushing cartridge is included. Note: 1. This option, CMYK Starter Kit or CMYK + Or & Gr Starter Kit must be selected to complete your configuration. 2. CMYK + W Starter Kit cannot be installed with CMYK Starter Kit or CMYK + Or & Gr Starter Kit.	CMYK + W Starter Kit The item(s) below are not compatible with this option and cannot be selected: CMYK Starter Kit (SUS-CMYK-L5160) CMYK + Or & Gr Starter Kit (SUS-CMYKORGR-L5160e) Pro L5160e Color Upgrade Kit Type C3 (342373) Pro AR Ink Cartridge Orange L5160e (344104) Pro AR Ink Cartridge Green L5160e (344105)	SUS-CMYKW-L5160
CMYK + Or & Gr Starter KitCMYK + Or & Gr Starter Kit Select this option when the customer requires CMYK plus Green and Orange printing. Starter Kit will include two 600ml cartridges each of black and magenta, and one 600ml cartridge each of cyan, yellow, orange and green. 8 total cartridges. In addition, one flushing cartridge is included. Note: 1. This option, CMYK Starter Kit or CMYK + W Starter Kit must be selected to complete your configuration. 2. CMYK + Or & Gr Starter Kit cannot be installed with CMYK Starter Kit or CMYK + W Starter Kit.	CMYK + Or & Gr Starter Kit The item(s) below are not compatible with this option and cannot be selected: CMYK Starter Kit (SUS-CMYK-L5160) CMYK + W Starter Kit (SUS-CMYKW-L5160) Pro AR Ink Cartridge White L5160 (344106) Pro AR Ink Cartridge White L5160 H (344111) Displacement Cartridge Type C2 (344116)	SUS-CMYKORGR-L5160e

Step 3: General Accessories

	Item/Description	Tips	Item #	Thumbnail
	Attention Light Type C2Attention Light Type C2 The attention light visually alerts operators to changes in printer status such as data in, printing or error occurred. Weight: 0.7 lbs. (.3 kg) W × D × H (inches): 6.3 × 6.3 × 29.1 W × D × H (mm): 160 × 160 × 739	No tooltip available.	342299
	Pro L5160e Color Upgrade Kit Type C3Pro L5160e Color Upgrade Kit Type C3 Authentication key required for activation of 6C (CMYK + Or & Gr) configuration. Note: CMYK + Or & Gr Starter Kit must be selected to add this option.	Pro L5160e Color Upgrade Kit Type C3 At least one of the item(s) below must be selected to be able to select this item: CMYK + Or & Gr Starter Kit (SUS-CMYKORGR-L5160e)	342373

Step 4: Professional Services

	Item/Description	Tips	Item #
TotalFlow Producer™ Options
	TotalFlow Producer Advanced – 1-year SubscriptionTotalFlow Producer Advanced – 1-year Subscription Cloud software solution that solves for manual tasks associated with print job onboarding, file malware scanning and job preflight. Also, empowers print service providers with rules-based automations and lightweight PDF editing tools for swift file changes in the Cloud. Note: 1. By choosing this option, RICOH TotalFlow Producer - Advanced Subscription Services will be added to your configuration. 2. TotalFlow Producer Advanced – 1-year Subscription cannot be installed with TotalFlow Producer Advanced – 3-year Subscription or TotalFlow Producer Advanced – 5-year Subscription.	TotalFlow Producer Advanced – 1-year Subscription The item(s) below will be selected if this item is selected: RICOH TotalFlow Producer - Advanced Subscription Services (PP-TFPRODUCER-ADVSVC) The item(s) below are not compatible with this option and cannot be selected: TotalFlow Producer Advanced – 3-year Subscription (5765-M20-0002-PR-S3) TotalFlow Producer Advanced – 5-year Subscription (5765-M20-0002-PR-S5)	5765-M20-0002-PR-S1
	TotalFlow Producer Advanced – 3-year SubscriptionTotalFlow Producer Advanced – 3-year Subscription Cloud software solution that solves for manual tasks associated with print job onboarding, file malware scanning and job preflight. Also, empowers print service providers with rules-based automations and lightweight PDF editing tools for swift file changes in the Cloud. Note: 1. By choosing this option, RICOH TotalFlow Producer - Advanced Subscription Services will be added to your configuration. 2. TotalFlow Producer Advanced – 3-year Subscription cannot be installed with TotalFlow Producer Advanced – 1-year Subscription or TotalFlow Producer Advanced – 5-year Subscription.	TotalFlow Producer Advanced – 3-year Subscription The item(s) below will be selected if this item is selected: RICOH TotalFlow Producer - Advanced Subscription Services (PP-TFPRODUCER-ADVSVC) The item(s) below are not compatible with this option and cannot be selected: TotalFlow Producer Advanced – 1-year Subscription (5765-M20-0002-PR-S1) TotalFlow Producer Advanced – 5-year Subscription (5765-M20-0002-PR-S5)	5765-M20-0002-PR-S3
	TotalFlow Producer Advanced – 5-year SubscriptionTotalFlow Producer Advanced – 5-year Subscription Cloud software solution that solves for manual tasks associated with print job onboarding, file malware scanning and job preflight. Also, empowers print service providers with rules-based automations and lightweight PDF editing tools for swift file changes in the Cloud. Note: 1. By choosing this option, RICOH TotalFlow Producer - Advanced Subscription Services will be added to your configuration. 2. TotalFlow Producer Advanced – 5-year Subscription cannot be installed with TotalFlow Producer Advanced – 1-year Subscription or TotalFlow Producer Advanced – 3-year Subscription.	TotalFlow Producer Advanced – 5-year Subscription The item(s) below will be selected if this item is selected: RICOH TotalFlow Producer - Advanced Subscription Services (PP-TFPRODUCER-ADVSVC) The item(s) below are not compatible with this option and cannot be selected: TotalFlow Producer Advanced – 1-year Subscription (5765-M20-0002-PR-S1) TotalFlow Producer Advanced – 3-year Subscription (5765-M20-0002-PR-S3)	5765-M20-0002-PR-S5
	RICOH TotalFlow Producer - Advanced Subscription ServicesRICOH TotalFlow Producer - Advanced Subscription Services Subscription service required with RICOH TotalFlow Producer. Note: TotalFlow Producer Advanced – 1-year Subscription, TotalFlow Producer Advanced – 3-year Subscription or TotalFlow Producer Advanced – 5-year Subscription must be selected to add this option.	RICOH TotalFlow Producer - Advanced Subscription Services At least one of the item(s) below must be selected to be able to select this item: TotalFlow Producer Advanced – 1-year Subscription (5765-M20-0002-PR-S1) TotalFlow Producer Advanced – 3-year Subscription (5765-M20-0002-PR-S3) TotalFlow Producer Advanced – 5-year Subscription (5765-M20-0002-PR-S5)	PP-TFPRODUCER-ADVSVC

Please Note:

For maximum performance and yield, we recommend using genuine Ricoh Family Group-branded parts and supplies.
Flushing Cartridge Type C2 has been automatically preselected because this option is required to complete your configuration.

Step 5: Supplies

Item/Description	Tips	Item #
Pro AR Ink Cartridge Black L5160Pro AR Ink Cartridge Black L5160 600ml - Ink Cartridge Black Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344100
Pro AR Ink Cartridge Cyan L5160Pro AR Ink Cartridge Cyan L5160 600ml - Ink Cartridge Cyan Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344101
Pro AR Ink Cartridge Magenta L5160Pro AR Ink Cartridge Magenta L5160 600ml - Ink Cartridge Magenta Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344102
Pro AR Ink Cartridge Yellow L5160Pro AR Ink Cartridge Yellow L5160 600ml - Ink Cartridge Yellow Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344103
Pro AR Ink Cartridge White L5160Pro AR Ink Cartridge White L5160 600ml - Ink Cartridge White Note: 1. CMYK + W Starter Kit must be selected to add this option. 2. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 3. Supplies are user consumables and can only be ordered through MyRicoh.	Pro AR Ink Cartridge White L5160 At least one of the item(s) below must be selected to be able to select this item: CMYK + W Starter Kit (SUS-CMYKW-L5160)	344106
Pro AR Ink Cartridge Orange L5160ePro AR Ink Cartridge Orange L5160e 600ml - Ink Cartridge Orange Note: 1. CMYK + Or & Gr Starter Kit must be selected to add this option. 2. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 3. Supplies are user consumables and can only be ordered through MyRicoh.	Pro AR Ink Cartridge Orange L5160e At least one of the item(s) below must be selected to be able to select this item: CMYK + Or & Gr Starter Kit (SUS-CMYKORGR-L5160e)	344104
Pro AR Ink Cartridge Green L5160ePro AR Ink Cartridge Green L5160e 600ml - Ink Cartridge Green Note: 1. CMYK + Or & Gr Starter Kit must be selected to add this option. 2. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 3. Supplies are user consumables and can only be ordered through MyRicoh.	Pro AR Ink Cartridge Green L5160e At least one of the item(s) below must be selected to be able to select this item: CMYK + Or & Gr Starter Kit (SUS-CMYKORGR-L5160e)	344105
Pro AR Ink Cartridge Black L5160 HPro AR Ink Cartridge Black L5160 H 1,200ml - Bulk Ink Cartridge Black Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344107
Pro AR Ink Cartridge Cyan L5160 HPro AR Ink Cartridge Cyan L5160 H 1,200ml - Bulk Ink Cartridge Cyan Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344108
Pro AR Ink Cartridge Magenta L5160 HPro AR Ink Cartridge Magenta L5160 H 1,200ml - Bulk Ink Cartridge Magenta Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344109
Pro AR Ink Cartridge Yellow L5160 HPro AR Ink Cartridge Yellow L5160 H 1,200ml - Bulk Ink Cartridge Yellow Note: 1. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 2. Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344110
Pro AR Ink Cartridge White L5160 HPro AR Ink Cartridge White L5160 H 1,200ml - Bulk Ink Cartridge White Note: 1. CMYK + W Starter Kit must be selected to add this option. 2. The ink that comes with the mainframe is a starter kit only. Additional ink is required for continued use of the equipment. 3. Supplies are user consumables and can only be ordered through MyRicoh.	Pro AR Ink Cartridge White L5160 H At least one of the item(s) below must be selected to be able to select this item: CMYK + W Starter Kit (SUS-CMYKW-L5160)	344111
Maintenance Kit Type C2 Maintenance Kit Type C2 A kit of items to help with cleaning if any issues occur. Kit includes a flushing solution (200ml bottle), three rubber gloves and two droppers. Note: Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344112
Cleaning Cartridge Type C2Cleaning Cartridge Type C2 Part of the automated maintenance. The cleaning cartridge has a wiper system that cleans the printhead during automated maintenance. Target Yield: 1.5 month/unit based on APV Note: Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344113
Waste Ink Bottle Type C2Waste Ink Bottle Type C2 Ink used in head cleaning and maintenance is stored in the waste ink bottle. This machine counts the accumulated amount of discharged ink. When that reaches 80% (1.6L) of the 2L bottle, the machine displays an alert message to change out the bottle. Note: Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344114
Cleaning Stick Type C2Cleaning Stick Type C2 Used during operator maintenance to wipe excess ink of of the printheads and cap rubbers. Note: Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344115
Displacement Cartridge Type C2Displacement Cartridge Type C2 For customers with CMYK + White configurations only. These cartridges are used when the customer plans to not print white ink for long durations. Put these cartridges in place of the white ink cartridges. This saves cost and prevents the white ink from being consumed during the daily maintenance purging of the printheads. Also, this option is needed when a flush of the machine is required for extended shut down or moving the printer to a new location. Note: 1. CMYK + W Starter Kit must be selected to add this option. 2. Supplies are user consumables and can only be ordered through MyRicoh.	Displacement Cartridge Type C2 At least one of the item(s) below must be selected to be able to select this item: CMYK + W Starter Kit (SUS-CMYKW-L5160)	344116
Flushing Cartridge Type C2Flushing Cartridge Type C2 Cleaning liquid cartridge. This option must be selected to complete your configuration. Note: Supplies are user consumables and can only be ordered through MyRicoh.	No tooltip available.	344117
